How To Choose The Right Key Switch Lock for Industrial Equipment: A Buyer's Guide

If your equipment requires controlled power authorization — whether it is a mobility scooter, a golf cart, a forklift, a server cabinet, or a vending machine — a key switch lock is likely the most appropriate safety mechanism. Choosing the wrong specification can lead to operational failures, security gaps, or costly rework. This step-by-step buyer's guide helps industrial procurement managers and equipment manufacturers make the right decision the first time.

What Is a Key Switch Lock?

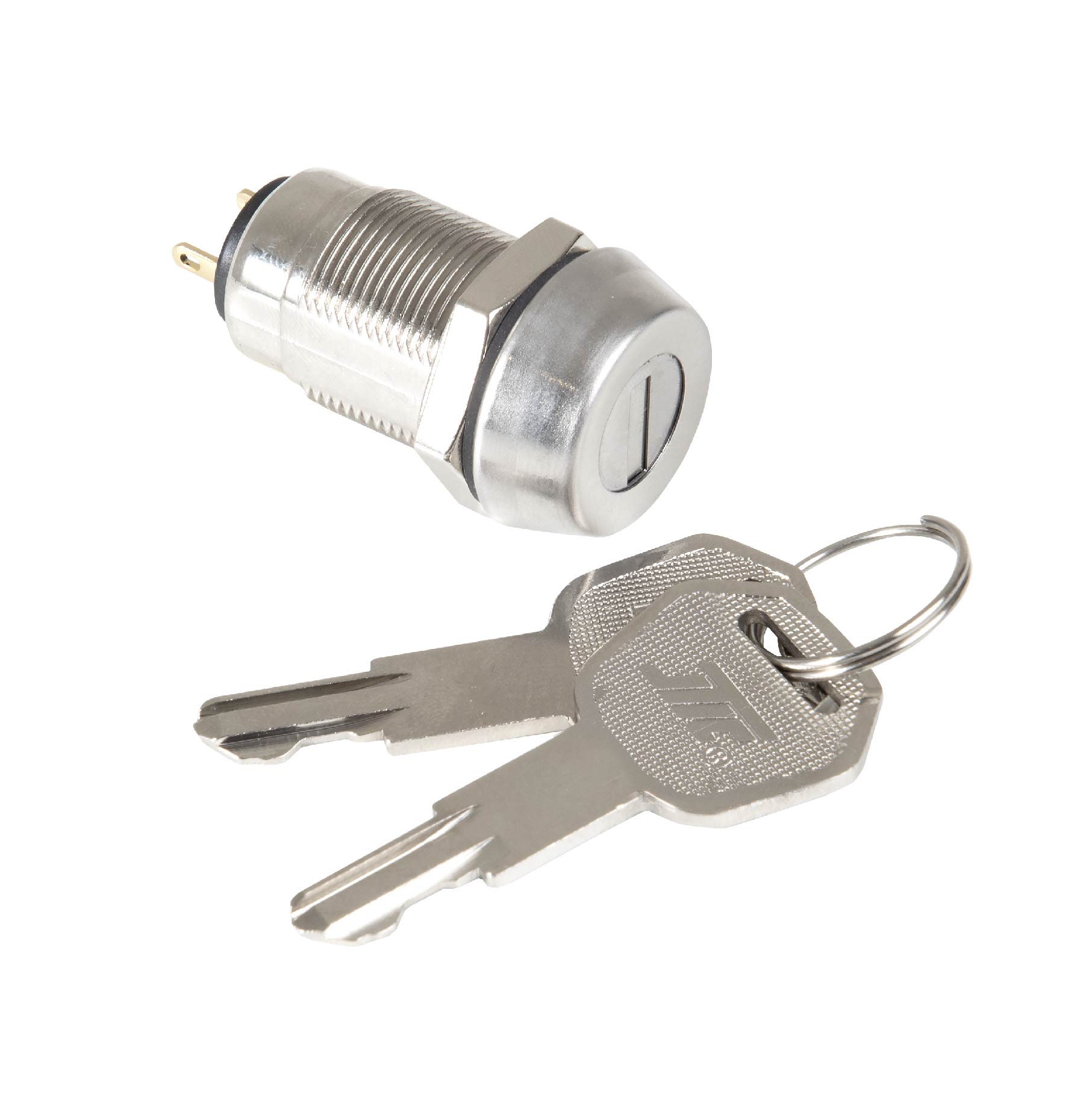

A key switch lock is a device that combines a physical lock cylinder with an integrated electrical switching mechanism. When an authorized key is inserted and rotated, the internal switching mechanism translates key rotation into controlled mechanical movement or electrical contact engagement — allowing or cutting power to connected equipment or electrical circuits.

The key provides physical authentication, ensuring that only authorized personnel can operate equipment or electrical circuits. Industrial key switch locks are purpose-built for high durability, accurate switching control, and stable performance in demanding operating environments.

Jin Tay was the first manufacturer in Taiwan to develop the 12 mm key switch lock — a milestone reflecting over 45 years of dedicated engineering in this product category.

Important: Key switch locks are designed for industrial equipment power control. Common applications include mobility scooters, golf carts, forklifts, servers, and vending machines. They are not intended for automotive or motorcycle ignition applications.

Step 1: Identify Your Application Scenario

Step 2: Select the Outer Diameter

• Key switch locks mount through a circular panel cutout. Jin Tay produces key switch locks in three standard outer diameters:

• 12 mm — the compact standard, ideal for space-constrained panels

• 16 mm — a versatile mid-size option suitable for a wide range of applications

• 19 mm — the most commonly specified size for heavy industrial equipment; also the standard for anti-vibration models

Step 3: Determine the Switching Mode

Step 4: Check the Terminal Configuration

The switching contacts at the rear of the key switch lock connect to your equipment's electrical circuit. Jin Tay key switch locks support up to 8 terminal pins, providing flexibility for multi-circuit control. The switching configuration can accommodate typically 2~3 positions up to a maximum of 8 positions depending on the model. When specifying terminals, confirm: the number of circuits to be switched, whether common (COM), normally-open (NO), or normally-closed (NC) configurations are needed, and the terminal pitch and connector type for wiring harness compatibility.

Step 5: Evaluate Environmental Protection Requirements

Step 6: Assess Security Level Requirements

Standard Key Switch Lock

Suitable for internal operations environments where the main requirement is access restriction by role — only key holders can operate the machine. Standard security levels are appropriate for most indoor industrial uses.

High-Security Key Switch Lock (S2931)

For environments where key duplication risk is high, or where the equipment being controlled has significant safety or commercial value, Jin Tay offers high-security key switch lock configurations. The S2931 is Jin Tay's recommended reference model for high-security key switch lock applications.

UL-Certified Models

Some products in the key switch lock range comply with UL certification requirements. If your project requires UL-certified components, specify this requirement during the inquiry stage and Jin Tay will confirm eligibility for the relevant model. Always verify specific model certification status with Jin Tay's team.

Correct Key Handling: Avoid Excessive Torque

Avoid Excessive Torque — Do not over-rotate the key. Excessive torque may damage the key and the internal detent mechanism.

Always operate the key switch with smooth, controlled rotation. If the key meets resistance before reaching the switch position, check for debris in the keyway or misalignment of the cam mechanism before applying additional force.

Frequently Asked Questions (FAQ)

Q: What is the difference between a key switch lock and a cam lock?

A key switch lock is purpose-built for power control: the rear of the lock contains electrical terminal pins that connect to a circuit, and key rotation controls whether that circuit is energized or de-energized. A cam lock, by contrast, has a rear-mounted rotating cam plate used to mechanically secure or release cabinet doors, drawers, and panel enclosures — there is no electrical function. The two product types are completely different in design; their components are not interchangeable.

Q: Can Jin Tay's key switch locks be used on golf carts and mobility scooters?

Yes. Jin Tay's key switch locks are designed for industrial and commercial mobile equipment applications including mobility scooters, golf carts, and forklifts. The anti-vibration properties of the relevant series (19 mm OD) address the operating conditions typical of these vehicles. These locks are not intended for automotive or motorcycle applications.

Q: How many terminal pins and switching positions does a key switch lock support?

Jin Tay key switch locks support up to 8 terminal pins, providing flexibility for multi-circuit control. Switching positions typically range from 2~3 positions in standard configurations, with up to 8 positions available depending on the model. For your specific wiring diagram and terminal layout requirements, request the product datasheet from Jin Tay's sales team.

Q: Are Jin Tay key switch locks RoHS and UL compliant?

All Jin Tay products comply with the EU RoHS environmental directive. Some products in the key switch lock range comply with UL certification requirements. If your project requires UL-certified components, specify this requirement during the inquiry stage and Jin Tay will confirm eligibility for the relevant model. Always verify specific model certification with the sales team.

Q: Can Jin Tay produce custom key switch locks for OEM projects?

Yes. Jin Tay has over 45 years of OEM manufacturing experience and has produced key switch locks for well-known international brands. Custom outer diameters, switching configurations, terminal layouts, and surface treatments are available for qualified OEM orders. Contact Jin Tay with your drawings or specifications.

Need a key switch lock specification review or OEM quotation? Jin Tay's engineering team is ready to support your project from specification to production.
