19mm Diameter High Security Cam Lock With 10,000 Key Combinations

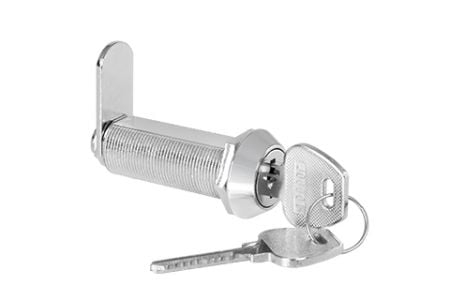

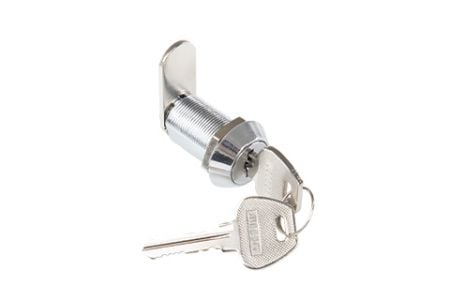

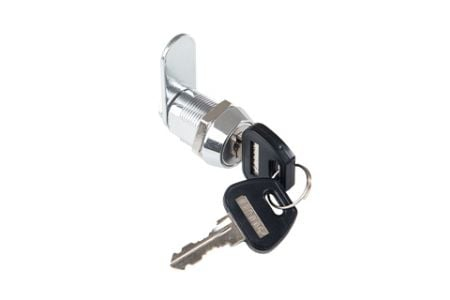

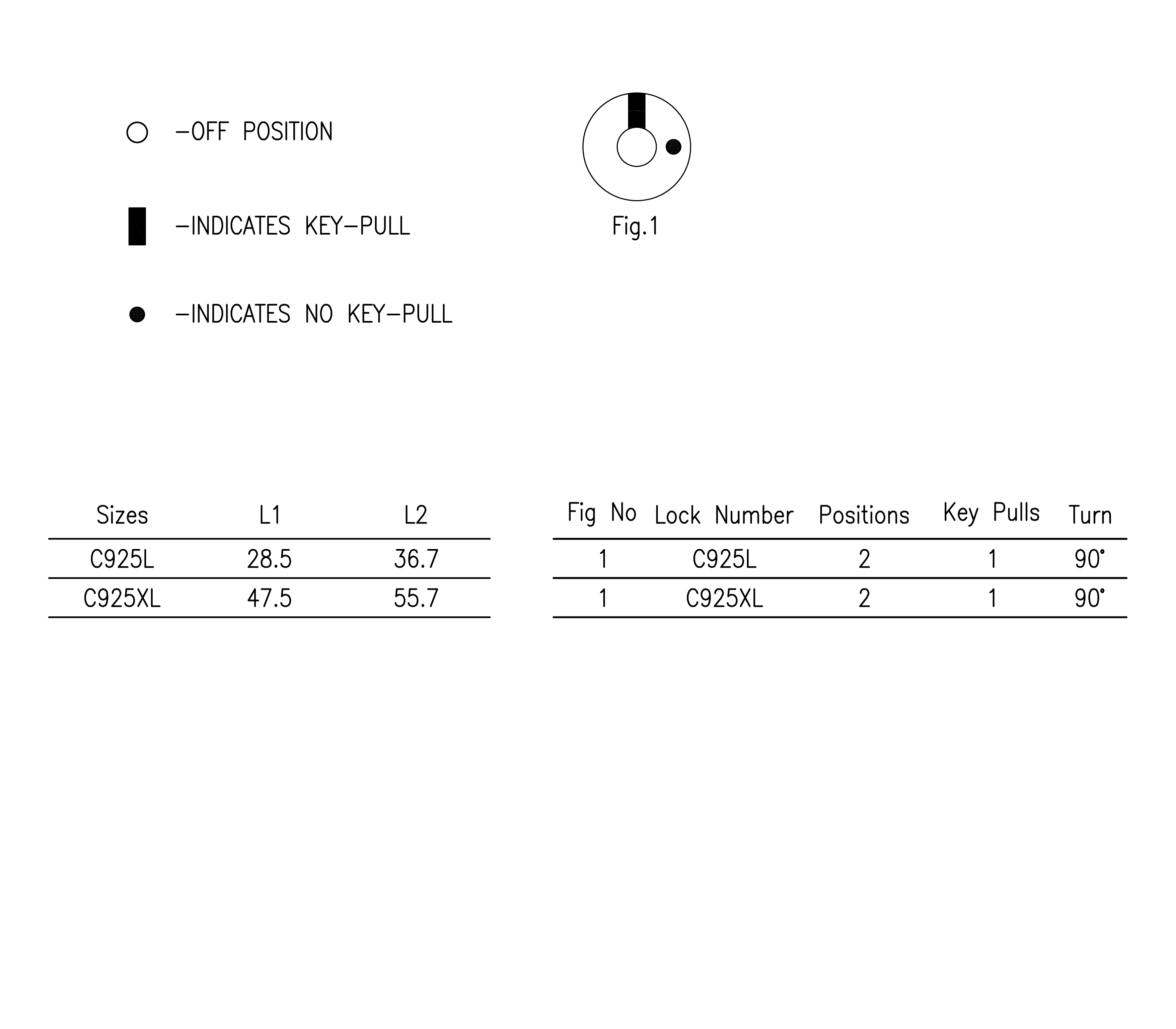

The lock C905D has a dust-proof device which can prevent objects or dust to falling into it easily. The C925L lock body lengthen design which can be used on equipment with thicker panels.

Another thicker brass nut can fix the lock strongly. The brass key with nickel plated and double-sided milling caused it is not easy to break or damage.

This security lock has a wide range of uses, such as its suitable for building letter boxes, safe deposit boxes, furniture cabinets, other cabinets, monitoring boxes, electrical boxes...etc.

Design a variety of cam in different sizes and styles for customers to choose which also can be customized available.

Features

• Zinc alloy die cast housing and cylinder.
• Bright chrome plated standard.
• C905 C925 10 disc tumbler mechanism.
• C905D 7 disc tumbler and with dust shutter mechanism.
• Reversible double-bitted brass keys, nickel plated.
• Key withdrawals in one position.
• Various cam configurations and rotations available.
• Cam is affixed by nut.
• Hex nut mounted.
• All keyed alike or one combination per 100 pcs standard.
• 10,000 combinations available.
• Master keying is available.

Order Information

• Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
• After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
• Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
• The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
• Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
• UL approval and RoHS 2.0 (2011/65/EU) compliant.
• The test report of the specified project can be provided according to the customer requested.

Gallery

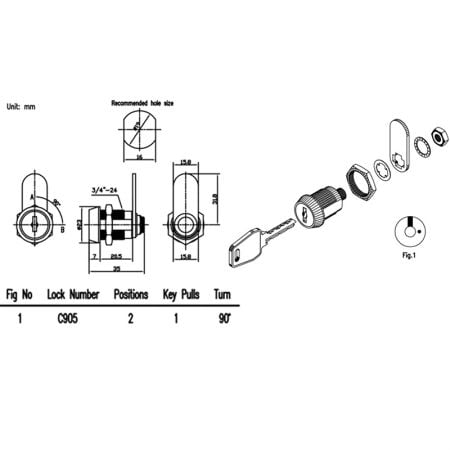

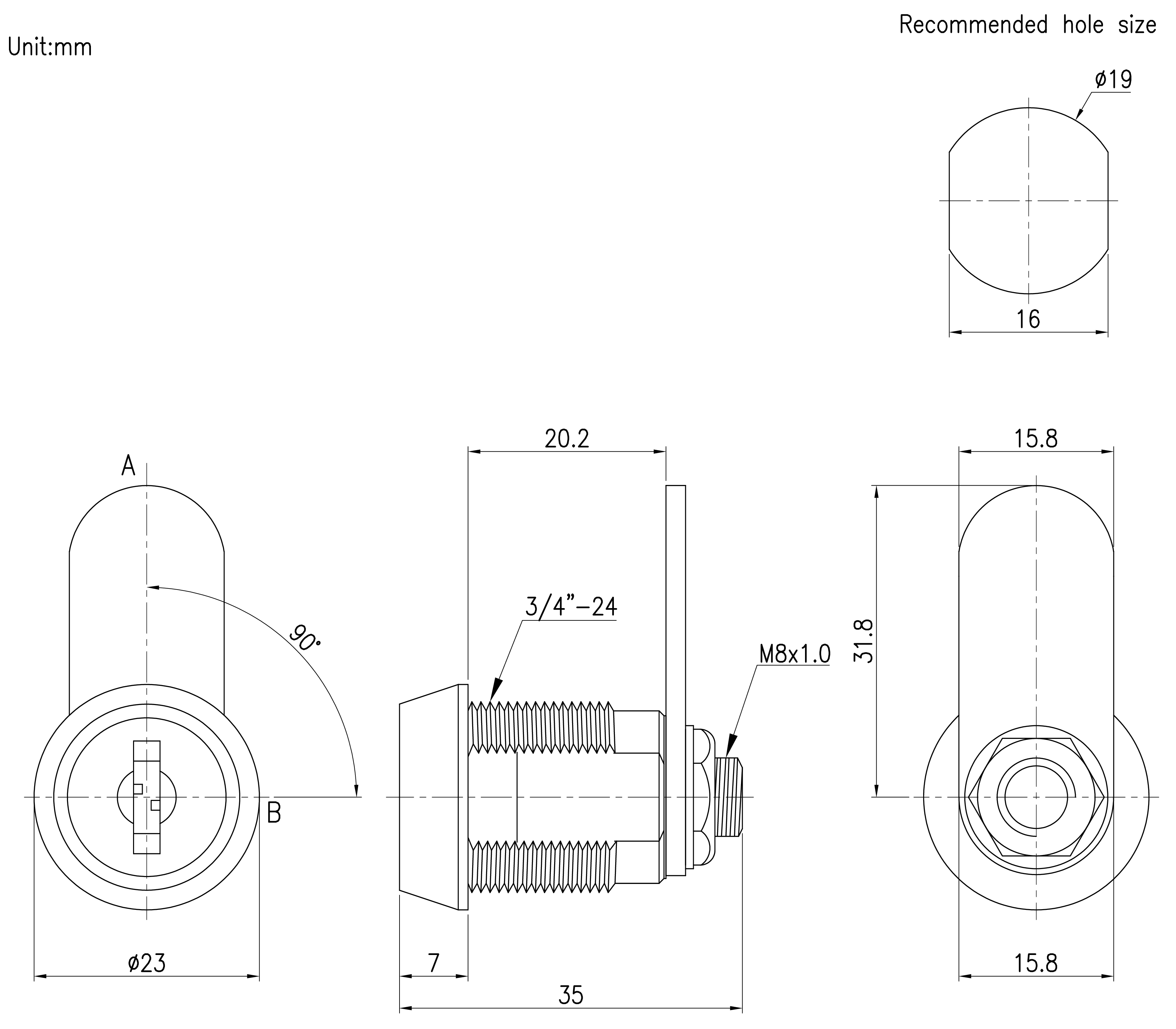

• Security lock C905 SPEC.

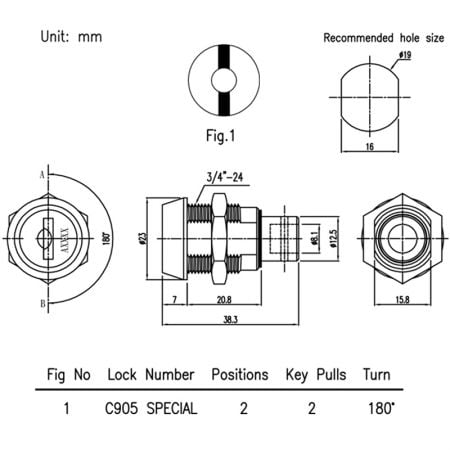

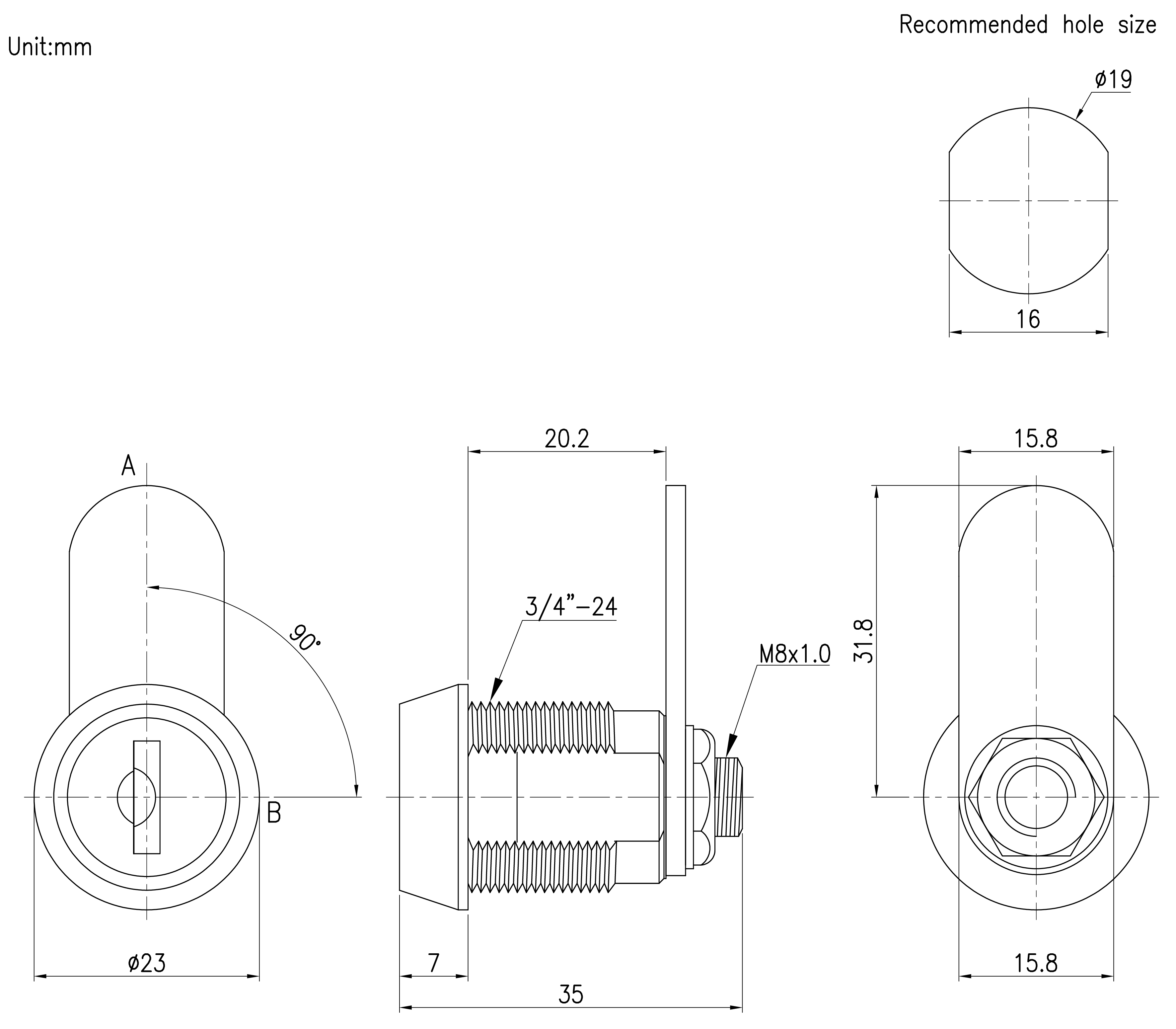

• Security lock C905D SPEC.

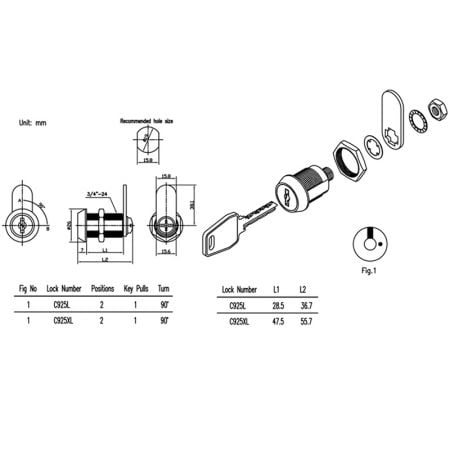

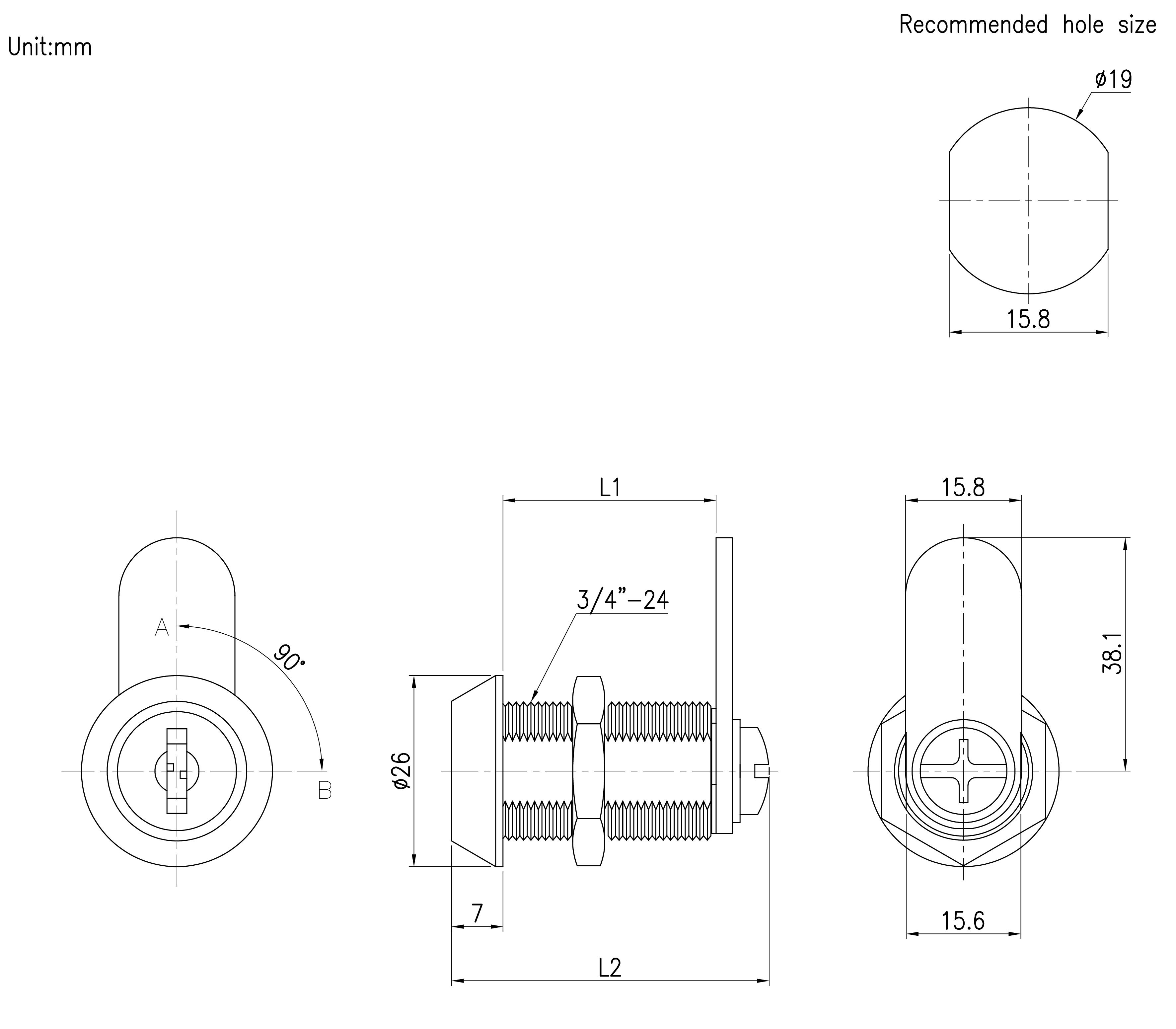

• Security lock C925 SPEC.
