Choosing the right cabinet lock type is one of the most consequential decisions in cabinet, locker, and enclosure design — yet it is often made without a full understanding of the technical and operational tradeoffs involved. This guide maps out all major cabinet lock types, compares mechanical and electronic approaches across key decision dimensions, and provides a practical framework for matching lock type to application scenario.
Cabinet locks can be organized into two primary categories: mechanical and electronic. Each category contains multiple subcategories with distinct operating mechanisms, security levels, and ideal applications.
Lock Type | Operating Mechanism | Security Level | Primary Application |
Cam Lock | Key rotates rear cam to lock or unlock panel | Standard to High (security series) | Filing cabinets, enclosures, vending machines |
Disc Detainer Lock | Key aligns disc detainers to release plug | High | High-value storage, access-managed cabinets |
Number Combination Lock (Wheel) | User dials correct number sequence | Standard | Personal storage, low-management environments |
Button / Wheel Combination Padlock | Button or wheel entry; no key required | Standard | Gym lockers, school storage, workplace lockers |
Handle Lock | Handle integrated with cam; single-unit design | Standard to High | Industrial drawers, heavy-duty cabinets |

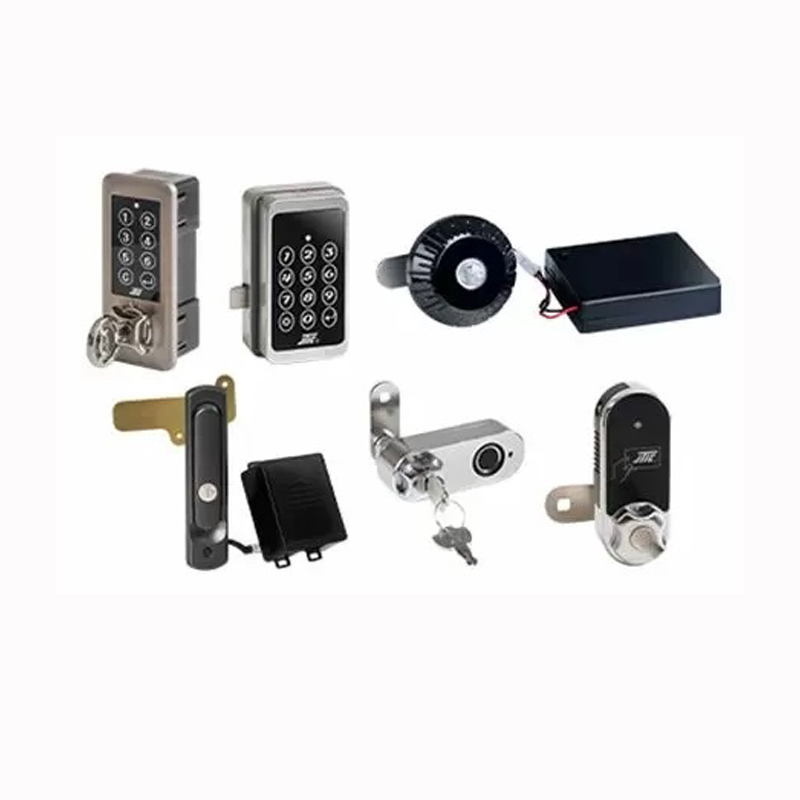

Lock Type | Authentication | Management Capability | Primary Application |
Digital Lock (Keypad) | Code entry via digital keypad | Code change only; no audit log | Guest-facing lockers, temporary storage |
NFC Lock | NFC card – hold near reader (13.56 MHz) | Multi-card authorization; access log | Workplace lockers, healthcare, shared spaces |
Fingerprint Lock | Biometric fingerprint scan | User enrollment management; access log | High-security personal storage |
Bluetooth / App Lock | Mobile app authentication | Remote authorization management | IoT-integrated deployments, shared rental |
Smart Locker Lock (Platform) | NFC plus Digital plus App; cloud or server managed | Full authorization management plus access log plus remote control | Enterprise, healthcare, logistics, education |
Decision Dimension | Mechanical | Electronic |
Access method | Physical key or memorized combination | NFC card, digital code, biometric, or app |
Who can access (audit) | Anyone with the key — no log | Specific authorized individuals — logged with timestamp |
Authorization changes | New key, re-keying, or lock replacement | Software update — no hardware change needed |
Power requirement | None (fully mechanical) | Battery or wired power required |
Maintenance | Minimal — inspect and lubricate annually | Battery replacement plus software updates |
Cost (upfront) | Lower | Higher — electronic components included |
Cost (operational) | Higher at scale — key management labor | Lower at scale — remote management reduces admin |
Compliance / audit trail | Not available | Access log supports compliance requirements |
Best deployment scale | Small, stable, fixed-access environments | Medium to large, dynamic-access environments |
Recommended: Standard cam lock or button/wheel combination padlock. If your use case is a stable, small-team environment where the same people always need access and there are no compliance requirements for access logging, a mechanical solution delivers the best cost-to-security ratio. A standard cam lock with keyed access is reliable, low-maintenance, and requires no power infrastructure.
Recommended: Electronic digital lock or NFC smart locker lock. Shared locker facilities face the challenge of constantly changing users. Electronic systems allow access authorization changes without touching the hardware, dramatically reducing management overhead across hundreds of locker units.
Jin Tay was the first company in Taiwan to patent a push-button padlock that allows users to change the password after purchase — a design that directly addresses the shared-access challenge in public locker deployments.
Recommended: Smart locker lock with access log and authorization management platform. In regulated industries — healthcare, pharmaceutical storage, financial document management — an access log is a compliance requirement, not a convenience feature. Smart locker locks that record every access event (who, when, which unit) provide the audit trail that mechanical locks structurally cannot.
Recommended: Security cam lock or disc detainer lock. For environments where the risk is physical attack or key duplication — warehouses, industrial storage, critical infrastructure access panels — a high-security mechanical cam lock with 7~14-disc and pin tumbler designs and 10,000+ key combinations provides robust mechanical protection without the complexity of electronic systems.
A button/wheel combination cabinet lock grants access through a memorized numeric code entered via buttons or rotating wheels — no key required. Key characteristics:
No key to carry or lose — ideal for personal and temporary storage
One-time-use password option: some models support codes that expire after a single use, ideal for public locker deployments
Dual-layer management: management override key (held by the facility operator) alongside user-controlled code
Jin Tay holds a patent for being the first company in Taiwan to manufacture a button-type padlock allowing post-purchase password modification
Requirement | What to Check | Jin Tay Position |
Durability | Housing material: zinc alloy, brass, or stainless steel | Standard zinc alloy; stainless steel available on security series |
Environmental compliance | RoHS compliance for EU market access | All Jin Tay products RoHS compliant |
Safety verification | UL certification (United States and Canada) | Multiple switching configurations, key entry orientations, and key profile options available |
Anti-corrosion | Surface treatment and material grade | Available on security series (anti-corrosion materials confirmed) |
Key management scale | Key combination count | Up to 10,000 key combinations (Security Cam Lock series); MASTER KEY for up to 500 units |
Q: What is the most secure type of cabinet lock?
For mechanical security, the highest-performing cabinet lock type is a security cam lock with 7~14-disc and pin tumbler designs and 10,000+ key combinations. This combination provides strong resistance to picking, bypassing, and key duplication. For UL-certified electrical safety verification (US and Canada), Jin Tay's Key Switch Lock series offers UL-certified options. For environments where access accountability is also required — knowing who opened the cabinet and when — a smart locker lock with NFC authorization and access logging adds an electronic security layer that no mechanical lock can provide.
Q: Can one key operate multiple cabinet locks?
Yes, through a MASTER KEY system. Jin Tay's cam lock range supports MASTER KEY configurations where a single master key can operate up to 500 individual lock units, while each unit retains its own distinct operating key. This is the standard approach for large facility deployments — schools, offices, warehouses — where an administrator needs access to all units while individual users retain private access to their own.
Q: How do I choose between a mechanical combination lock and an electronic cabinet lock?
The primary decision factor is whether you need an audit trail and remote access management. If your storage environment is stable, access rarely changes, and there are no compliance requirements for access logging, a mechanical combination lock (wheel or button type) provides reliable, low-cost security with no power dependency. If access changes frequently, you manage many units, or you need to demonstrate compliance through access logs, an electronic smart locker lock is the appropriate solution.
Q: What outer diameter does a cam lock need to fit my cabinet panel?
Jin Tay cam locks are available in 12 mm, 16 mm, and 19 mm outer diameters. Measure your cabinet panel's existing hole diameter to determine the correct size. If your cabinet hole does not match these standard diameters, or if you are designing a new product for OEM production, Jin Tay can produce custom outer diameters. The barrel length — 16 mm, 22 mm, 28 mm, or 34 mm — should be matched to your panel thickness.
Q: Does Jin Tay offer OEM production for custom cabinet locks?
Yes. With over 45 years of manufacturing experience, Jin Tay provides OEM and ODM services across its full product range including cam locks, smart locker locks, and combination cabinet locks. Custom specifications — outer diameter, cam configuration, finish, key combination count, electronic authentication method — are available for qualified OEM orders. Contact Jin Tay's sales team with your design specifications or engineering drawings.
Need guidance on the right cabinet lock type for your product design or facility? Jin Tay's team can review your application requirements and recommend the optimal solution.
