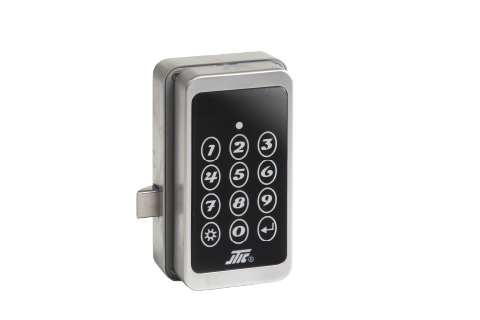

iT603N card + password control dual-function smart NFC cabinet lock

Cabinet Lock You can use a paired NFC card to unlock. Up to 100 proximity cards can be configured. You can also directly use a password to unlock, making it convenient for multi-person environments.It is usually set to a long-off state with ultra-low power consumption. It uses 4 AA batteries to provide power. It can also be used to recharge the power in an emergency.When the battery is full, it can be used continuously for at least 2,000 switches and settings.You can set and manage your own passwords, and there is a clear button on the back to return to the original factory settings for easy use and management.

The zinc alloy material and electroplated sand-butylene surface treatment comply with the IP54 waterproof and dustproof coefficient specification, so it is suitable for use in places with temperatures ranging from -20°C to +75°C. There is no limit on the panel thickness during installation and use. Applicable to a variety of personal or public hardware facilities, such as lockers, mailboxes, tool boxes, etc.

Product Features

* Zinc alloy lock body, sand nickel, each lock comes with 2 NFC cards.

* Cards and passwords can be created by yourself.

* Unlocking method: digital password or NFC card

* Usage situation: Shared in public places or used by specific people in the area

* Management mode: Management card

* There is a clear button on the back to return to the original factory settings.

* There is no panel thickness limit during installation.

* New batteries can continuously open and close the lock more than 2,000 times.

* LED lights and beeps guide operations.

* Ultra-low standby function.

* Low battery reminder function.

* MICRO USB is used for emergency power supply.

Product specifications/parameters

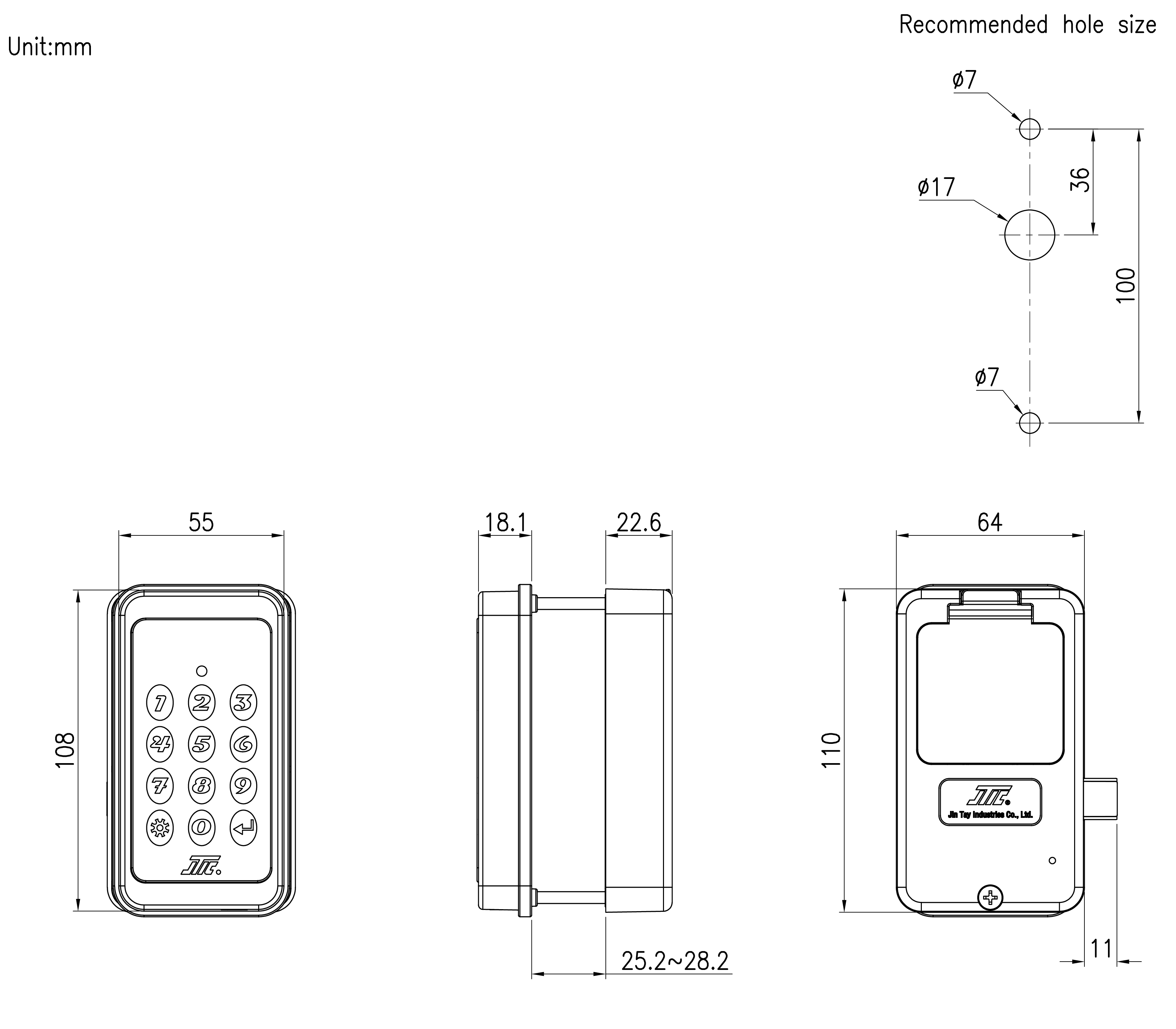

* Appearance size: 55.4mm x 108.5mm x 43mm

* Unlocking method: password, NFC

* Number of password groups: 10 groups, each group has 4~6 digits

* Unlock alarm: tentative unlock alarm

* Waterproof/dustproof: IP54

* Lightning protection: motor isolation method

* Anti-static: 8Kv

* Rated voltage: DC3v ~ 6v

* Working current: 150mA

* Working temperature: -20℃ ~ 75℃

* Working humidity: < 95%RH

* Standby current: < 30Ua

* Emergency power supply: USB power supply

* Battery specifications: 4 AAA batteries

* Number of switches: > 30,000 times

Ordering information

* You can use drawings, samples, etc. to confirm product specifications before placing an order.

* After the order is established, order cancellation or order content changes can be accepted within 7 days from the date of order receipt.

* Delivery time: The estimated delivery time for standard product orders within 3,000 PCS is 45 days.

* The minimum order quantity of the product is set to 500PCS/LOT, and orders under the 'price based on quantity' model are also accepted (please discuss the details with the salesperson).

* Products can be customized according to customer needs.

* Complies with RoHS 2.0 (2011/65/EU) standards.

* Test reports for specified projects can be provided according to customer requirements.
