iT806F
Jin Tay
iT806F

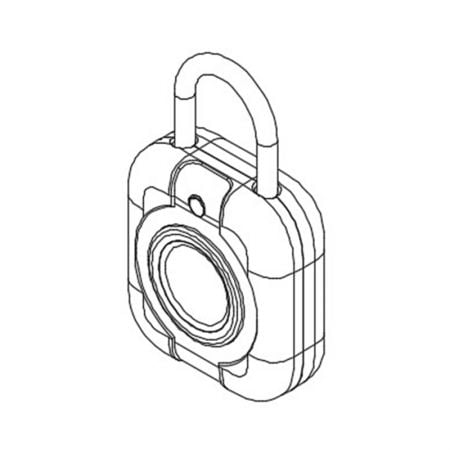

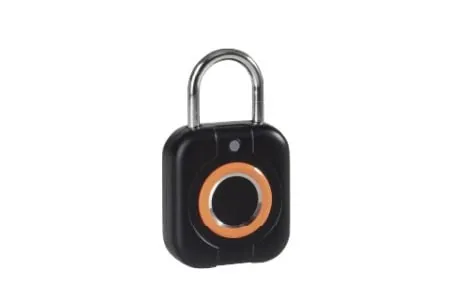

The iT806F is a fingerprint padlock that unlocks in under 0.5 seconds with a 360-degree touch sensor - no keys to manage, no app to install. Fingerprints are registered directly on the lock body, with 10 fingerprints as standard. Built by Jin Tay, a Taiwan lock manufacturer since 1980, the iT806F is designed for lockers, cabinets, tool boxes, and carry-on bags in B2B deployments.
Fast, accurate recognition: 508 DPI sensor, second-generation 176 x 176 pixel array, matching in under 5 ms, unlock in under 0.5 seconds.
Security you can quantify: false acceptance rate below 0.001%, false rejection below 1%, and the lock stops accepting input after consecutive failed attempts.
No app, no platform dependency: register and delete fingerprints on the lock body itself - practical for shared lockers and staff turnover.
Built for real environments: IP54 rated per IEC/EN 60529, operating range -20 to +55 degrees Celsius, ESD protection to 8 kV.
Long service between charges: about 6 months standby, up to 1,500 unlocks per full charge (up to 2,000 under optimal conditions), 1.5-hour charging via Type-C on the second generation.
RoHS 2.0 compliant materials: zinc alloy body with black electro-coating and a chrome-plated steel shackle.
Item | Specification |
Body / finish | Zinc alloy, black electro-coating |
Shackle | Steel, chrome-plated; diameter 3.5 mm; inside height 17.5 mm; inside width 17.0 mm |

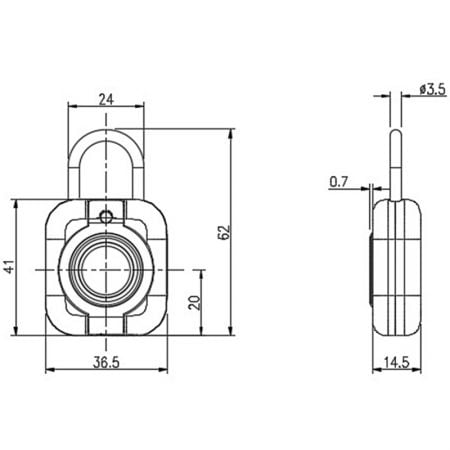

Dimensions / weight | 36.5 x 41 x 14.5 mm; 63 g (battery included) |
Fingerprint sensor | 360-degree touch, 508 DPI; 2nd generation 176 x 176 px |
Recognition | FAR < 0.001%; FRR < 1%; matching < 5 ms; unlock < 0.5 s |
Fingerprint capacity | 10 fingerprints (standard) |
Battery | 80 mAh lithium polymer; approx. 6 months standby; 1.5 h charge; up to 1,500 unlocks per charge (2,000 optimal) |
Charging port | Type-C (2nd generation); Micro USB (1st generation) |
Ingress protection | IP54 (per IEC/EN 60529) |
Operating temperature | -20 to +55 degrees Celsius |
ESD protection | 8 kV |
Security mechanism | Lockout after consecutive failed attempts |
Compliance | RoHS 2.0 |
Gym and pool lockers, office and staff cabinets, tool and equipment boxes, backpacks and carry-on bags, and shared-use lockers in co-working or hospitality settings. Wherever keys get lost and codes get shared, a fingerprint is the credential that stays with the user.
• Standard black: MOQ 300 pcs.
• Printed pattern: MOQ 1,000 pcs.
• Laser-engraved logo: MOQ 300 pcs.
• Packing: colour box, 60 pcs per carton.
Request a sample or the full specification sheet from the Jin Tay sales team.
Q: How many fingerprints can the iT806F store?
A: The iT806F stores 10 fingerprints as standard. Registration and deletion are done directly on the lock body - no app is required - so shared users can be added or removed on the spot for lockers, cabinets, and equipment cases.
Q: How long does the iT806F battery last?
A: A full 1.5-hour charge of the 80 mAh lithium polymer battery supports around 6 months of standby and up to 1,500 unlocks per charge (up to 2,000 under optimal conditions). The second-generation model charges via Type-C.
Q: Is the iT806F weatherproof?
A: The iT806F is rated IP54 per the IEC/EN 60529 standard - protected against dust ingress and water splashes - and operates from -20 to +55 degrees Celsius, so it suits gym, poolside, and outdoor locker use.
Q: What happens if someone tries random fingerprints?
A: After consecutive failed fingerprint attempts, the iT806F stops accepting further attempts, blocking brute-force tries. Combined with FAR below 0.001%, false acceptance is effectively excluded in daily use. Contact Jin Tay for OEM terms - black units start at MOQ 300.
Looking for a reliable fingerprint padlock manufacturer?
Jin Tay offers OEM/ODM services with over 45 years of lock manufacturing expertise. Contact our team for samples, specifications, or a custom quote.
