| Quantity: | |
|---|---|

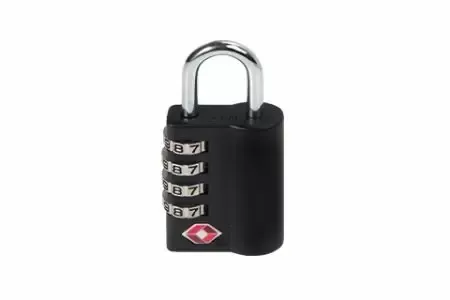

CP598-TS
| Item | Specification |
|---|---|
| Model | CP598-TS |
| Combination | 4 digital wheels, resettable — 10,000 combinations (0000–9999) |
| Material (body) | Zinc alloy (standard: black or silver; custom colors available) |
| Shackle | Bright chrome iron, 4.0 mm |

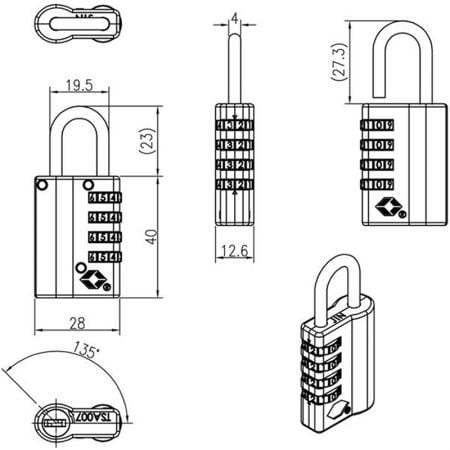

| Dimensions | W 28 × H 63 × D 13 mm |
| Strength test | 20 KGF |
| Corrosion resistance | Salt spray test: 24 hours |
Higher security: 4-wheel mechanism (10,000 combos) vs 3-wheel (1,000 combos) — greater resistance to guessing/brute force.
TSA inspection friendly: TSA-compliant design prevents damage during airport inspections.
Keyless convenience: No key to lose — easy to set and reset by user.
OEM flexibility: Color/style/packaging customization and optional features (anti-vibration, dust-proof, anti-static).
Tested reliability: 20KGF strength test and 24-hour salt spray resistance standard; extended testing/reporting available on request.
TSA compliance: Designed to meet Transportation Security Administration requirements so airport security can open and relock without destroying the lock.
RoHS 2.0 (2011/65/EU): Materials compliant with hazardous-substance limits.
UL: UL approval available on request.
Test reports: Strength test (20KGF) and salt spray (24 hours) standard; specific test reports can be provided for contractual or regulatory needs.
Q1: How do I reset the combination on the CP598-TS?
A: Reset procedures vary slightly by mechanism. Typical steps: set the lock to the current combination, push/pull or rotate the reset lever (if present), change wheels to new code, then return lever to lock position. Always confirm with the supplied instruction sheet or sample drawing.
Q2: What if I forget the combination?
A: If the combination is lost, the lock cannot be opened without proper tools. For bulk/OEM orders we can discuss master-keyed solutions or provide replacement options — please include your requirements when ordering.
Q3: Are these locks accepted at airports worldwide?
A: The CP598-TS is TSA-compliant, designed so authorized security agents can inspect luggage without breaking the lock. Local airport policies can vary; carry documentation if needed.
TSA Lock CP598-TS SPEC.
| Item | Specification |
|---|---|
| Model | CP598-TS |
| Combination | 4 digital wheels, resettable — 10,000 combinations (0000–9999) |
| Material (body) | Zinc alloy (standard: black or silver; custom colors available) |
| Shackle | Bright chrome iron, 4.0 mm |
| Dimensions | W 28 × H 63 × D 13 mm |
| Strength test | 20 KGF |
| Corrosion resistance | Salt spray test: 24 hours |
Higher security: 4-wheel mechanism (10,000 combos) vs 3-wheel (1,000 combos) — greater resistance to guessing/brute force.
TSA inspection friendly: TSA-compliant design prevents damage during airport inspections.
Keyless convenience: No key to lose — easy to set and reset by user.
OEM flexibility: Color/style/packaging customization and optional features (anti-vibration, dust-proof, anti-static).
Tested reliability: 20KGF strength test and 24-hour salt spray resistance standard; extended testing/reporting available on request.
TSA compliance: Designed to meet Transportation Security Administration requirements so airport security can open and relock without destroying the lock.
RoHS 2.0 (2011/65/EU): Materials compliant with hazardous-substance limits.
UL: UL approval available on request.
Test reports: Strength test (20KGF) and salt spray (24 hours) standard; specific test reports can be provided for contractual or regulatory needs.
Q1: How do I reset the combination on the CP598-TS?
A: Reset procedures vary slightly by mechanism. Typical steps: set the lock to the current combination, push/pull or rotate the reset lever (if present), change wheels to new code, then return lever to lock position. Always confirm with the supplied instruction sheet or sample drawing.
Q2: What if I forget the combination?
A: If the combination is lost, the lock cannot be opened without proper tools. For bulk/OEM orders we can discuss master-keyed solutions or provide replacement options — please include your requirements when ordering.
Q3: Are these locks accepted at airports worldwide?
A: The CP598-TS is TSA-compliant, designed so authorized security agents can inspect luggage without breaking the lock. Local airport policies can vary; carry documentation if needed.
TSA Lock CP598-TS SPEC.
