S361 / S371 Series 16mm Key Switch Lock with 60° Indexing

5 0 Reviews
16mm key switch lock with 60° indexing and a spring-ball detent for a definite stop at each maintained position. S361 in zinc alloy with bright chrome finish; S371 in black polycarbonate (PC). Maintained or momentary contact, wire assembly and key codes to order.
Availability:
Quantity:


The Jin Tay S361 series is a 16mm key switch lock whose key moves between switching positions in 60° steps, held at each step by a spring-ball detent. It is built in zinc alloy (S361) or black polycarbonate (S371), with maintained or momentary contact.


The S361 series is a compact key switch lock for 16mm panel cutouts. The key provides physical authentication, ensuring that only authorized personnel can operate equipment or electrical circuits. Behind the cylinder, the cam or switching mechanism translates key rotation into controlled mechanical movement or electrical contact engagement.


60° indexing with a positive detent.


Each switching position sits 60° from the next, and a built-in spring ball holds the key at each maintained position, so the operator feels the switch engage.


Two bodies, one switching platform.


Model Housing and cylinder Key

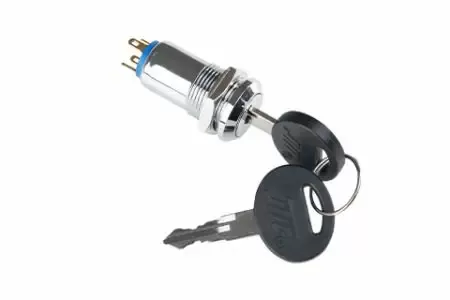

S361 Zinc alloy die-cast, bright chrome finish Nickel-plated brass flat key with plastic cover

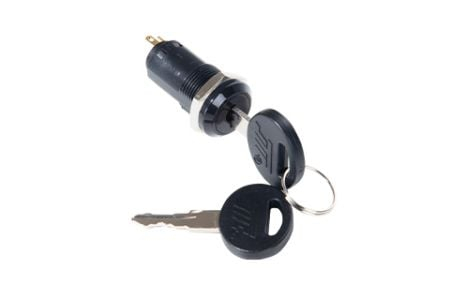

S371 Black polycarbonate (PC) Nickel-plated brass flat key with plastic cover

Both are available with maintained or momentary contact and mount with a hex nut or a speed clip. The switching diagram for each version — positions, contact action and key withdrawal — is shown on the Jin Tay drawing. To compare with other diameters, see the 12mm, 16mm and 19mm switch lock range.


Where it is specified.


Equipment power control on mobility scooters, golf carts and forklifts, medical equipment, gaming machines and cash registers, and monitoring or control devices where panel space is limited.


Built to order for OEM lines.


Wire assembly, laser engraving and stamped key codes are handled in production, with keyed-alike or keyed-different programs. Multiple switching configurations, key entry orientations, and key profile options are available. Jin Tay, founded in 1980, was the first manufacturer in Taiwan to develop the 12mm key switch lock.


Compliance.


RoHS 2.0 (2011/65/EU) and REACH compliant.

Avoid Excessive Torque — Do not over-rotate the key. Excessive torque may damage the key and the internal detent mechanism.


Features


  • 16mm diameter; hex nut or speed clip mounting

  • 60° indexing with spring-ball detent

  • S361 zinc alloy, bright chrome finish; S371 black polycarbonate (PC) body

  • Maintained or momentary contact

  • Wire assembly, laser engraving and stamped key codes available

  • RoHS 2.0 and REACH compliant


Function Specification


  • Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC

  • Contact Resistance: 50Milli-Ohms Max.

  • Insulation Resistance: 109 Ohm Min.

  • Dielectric Strength: 1000 VAC -1 Minute.


Order Information


  • Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.

  • After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.

  • Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.

  • The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)

  • Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.

  • RoHS 2.0 (2011/65/EU) and REACH compliant

  • The test report of the specified project can be provided according to the customer requested.


Need a 16mm key switch lock for a compact panel? Contact Jin Tay for the S361 / S371 drawing, samples or an OEM quotation.

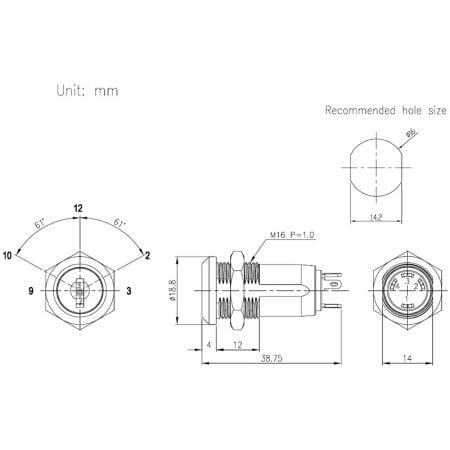

    • S361 S371 16mm Switch Lock with Flat key SPEC.
      S361 S371 16mm Switch Lock with Flat key SPEC.


FAQ


What does 60° indexing mean on the S361 key switch lock?


Indexing is the angle the key travels between switching positions. On the S361 series each position is 60° apart, and a built-in spring-ball detent holds the key at each maintained position with a definite stop, so the operator can feel when the switch has engaged. The format suits 16mm panel cutouts where space is limited. The switching diagram for each version — positions, contact action and key withdrawal — is shown on the Jin Tay drawing, which should be confirmed before an order is placed.


What is the difference between the S361 and the S371?


The two share the same 16mm format, 60° indexing and switching options; the difference is the body. The S361 has a zinc alloy die-cast housing and cylinder with a bright chrome finish. The S371 uses a black polycarbonate (PC) body for panels where a non-metal housing or a black appearance is specified. Both use nickel-plated brass flat keys with a plastic key cover. When requesting a quotation, state which body the equipment requires so Jin Tay can prepare the matching drawing and sample.


What equipment is the S361 series key switch lock used on?


The S361 series is specified for equipment power control on compact panels: mobility scooters, golf carts and forklifts, medical equipment, gaming machines and cash registers, and monitoring or control devices. The 16mm diameter saves panel space, while the detent gives clear feedback at each position. As with every Jin Tay key switch lock, the key provides physical authentication, ensuring that only authorized personnel can operate equipment or electrical circuits. Share the panel cutout and circuit diagram with Jin Tay to confirm the fit.


Can the S361 series be customized for OEM orders?


Yes. Jin Tay supplies the S361 series with wire assembly, laser engraving and stamped key codes, in keyed-alike or keyed-different programs, and with hex nut or speed clip mounting. Multiple switching configurations, key entry orientations, and key profile options are available. Jin Tay, founded in 1980, was the first manufacturer in Taiwan to develop the 12mm key switch lock. Minimum order quantities and lead times depend on the configuration; contact Jin Tay with a drawing or sample for a quotation.
