16mm UL Certified Anti-Vibration Resistant Switch Lock

The S3012 series is Jin Tay's 16mm anti-vibration key switch lock family (S3012, S3013, S3014, S3212, S3213, S3214), rated IP65 per IEC/EN 60529 and verified by SGS third-party testing. The key provides physical authentication, ensuring that only authorized personnel can operate equipment or electrical circuits. Manufactured in Taiwan by Jin Tay since 1980.

Why Specify the S3012 Series?

• IP65 Ingress Protection: Rated per IEC/EN 60529 and SGS tested—dust-tight and protected against water jets, for washdown areas, outdoor mounting, and dusty industrial environments.

• Anti-Vibration Design: Engineered for equipment that moves or vibrates in operation.

• Durable Construction: Zinc alloy die-cast housing and cylinder with bright chrome plating; plated contacts and terminals on a fire-resistant terminal base (per product page).

• Flexible Switching: 2-position, 3-position, momentary, and multi-position configurations up to 8 positions; up to 8 terminal pins with single- or dual-circuit switching.

• OEM-Ready: Multiple switching configurations, key entry orientations, and key profile options available; wire-soldering processing on request.

Where Does the S3012 Series Fit?

Mobility scooters, golf carts, and forklifts; industrial control boxes and servers; vending machines, lawn mowers, and alarm systems—applications where power should switch only under an authorized key, and where vibration and ingress would defeat a lesser switch.

Specification

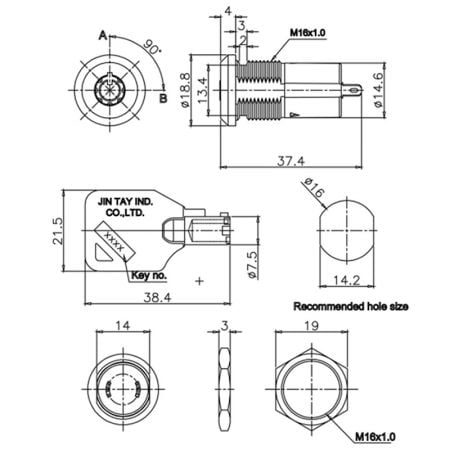

Key switch lock (S301) is a 5 disc tumbler mechanism, with reversible double-bitted brass keys, nickel plated with a plastic cover; 20 key code combinations are available. S321 is a 7 pin mechanism, with a nickel-plated tubular key with a plastic cover; up to 10,000 key combinations are available.

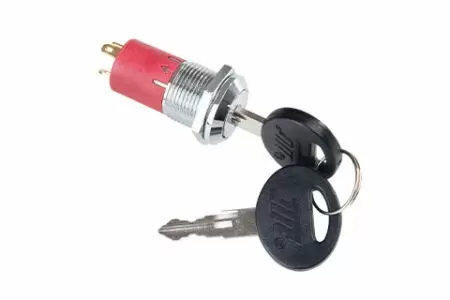

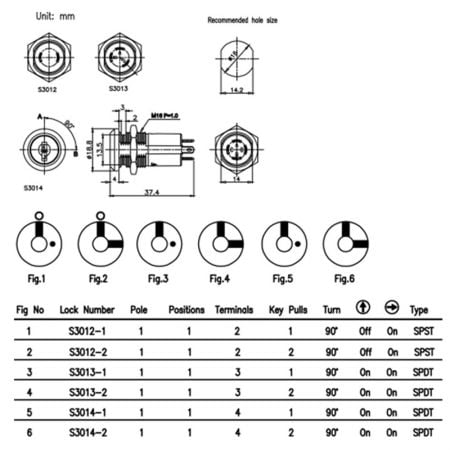

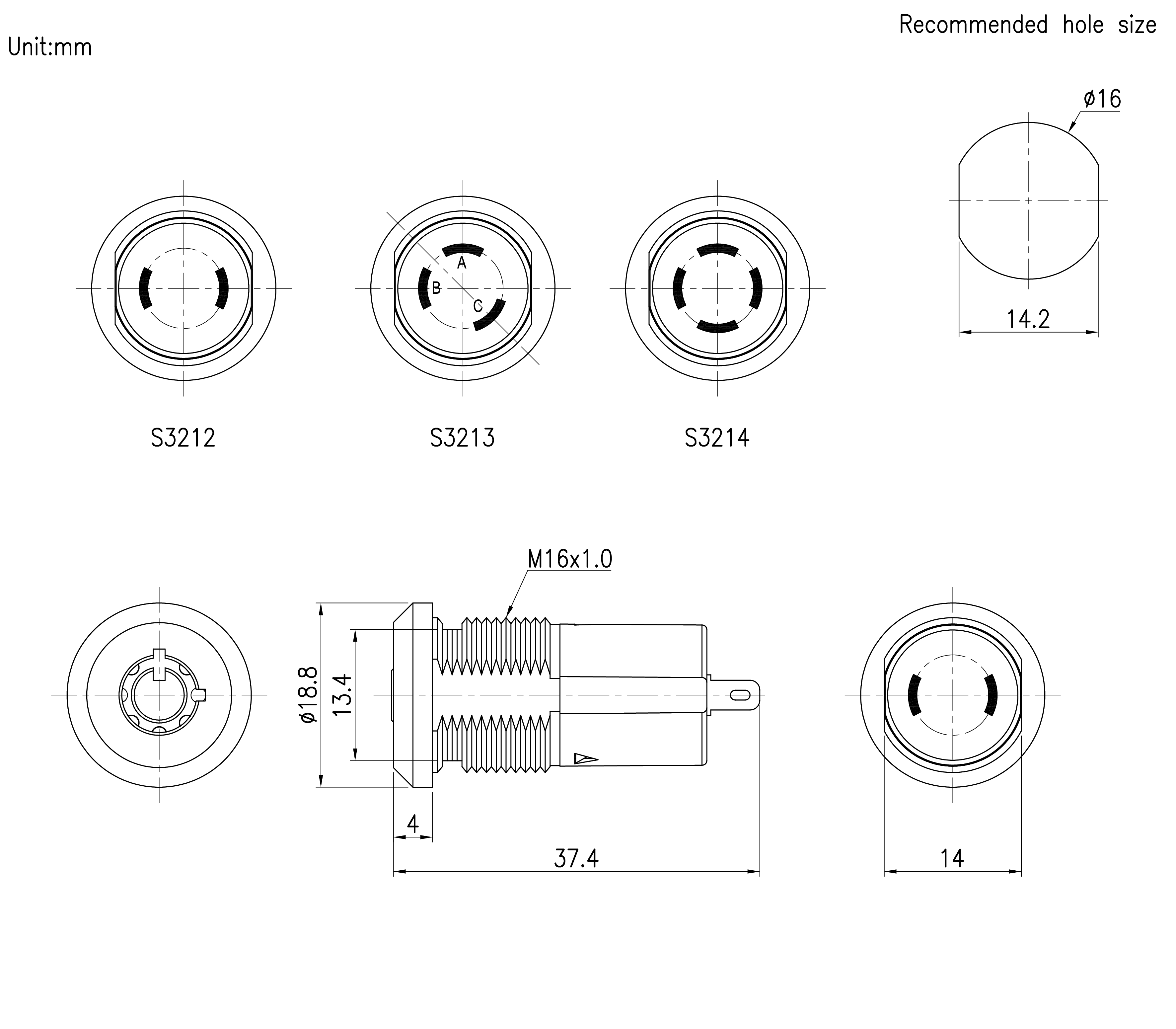

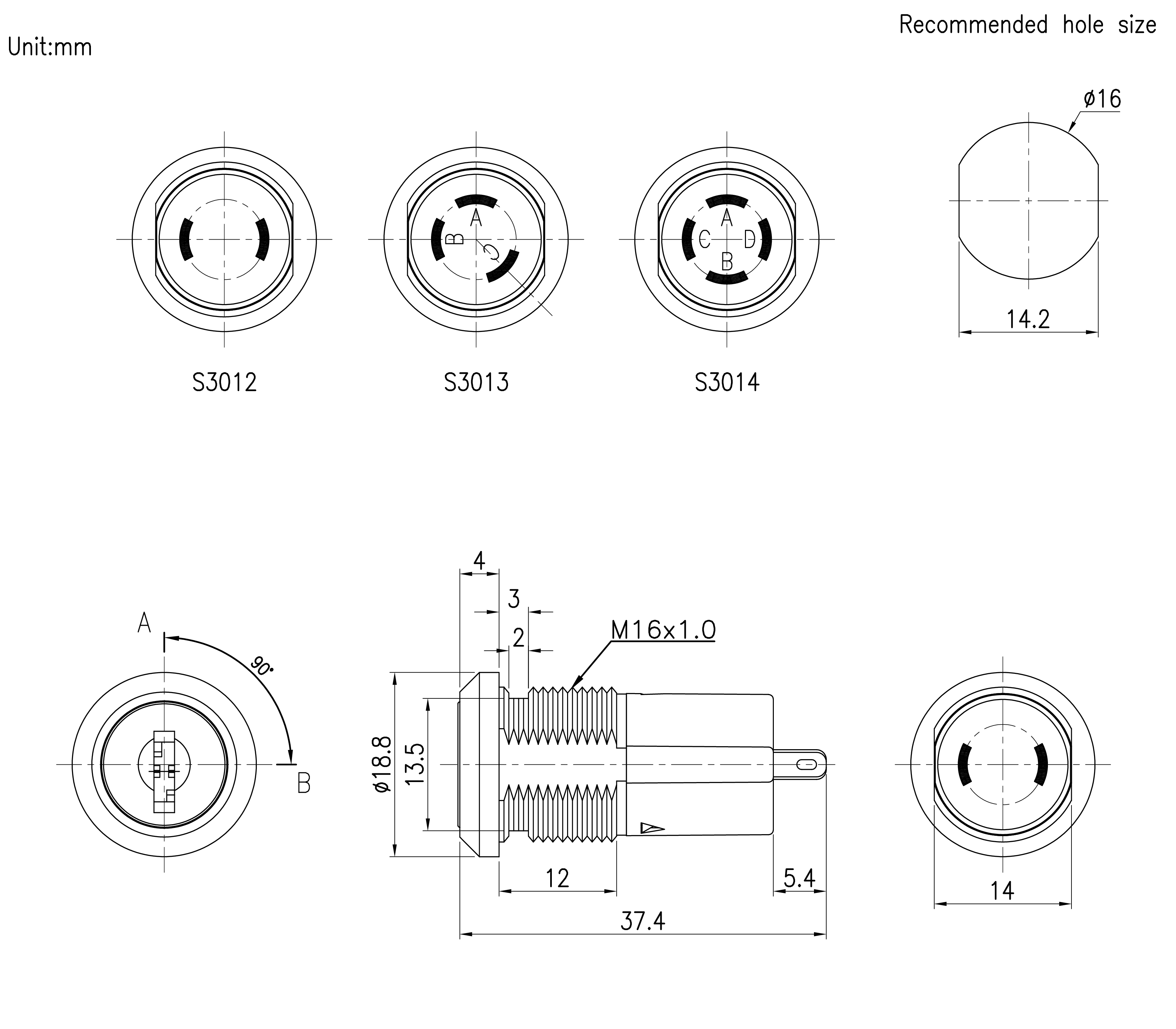

Key switch locks S3012 and S3212 are made with 2 terminals for the OFF-ON switch function. S3013 and S3213 are made with 3 terminals for the ON-ON switch function. S3014 and S3214 are made with 4 terminals for the ON-ON switch function. Jin Tay can offer wire assembly, laser engraving, and stamped key codes upon customer request.

Contact rating: 3A 125VAC, 2A 250VAC, 4A 28VDC. Contact resistance: 50 milli-ohms max. Insulation resistance: 109 ohms min. Dielectric strength: 1000VAC for 1 minute. Passed a life cycle test of 6,000 operations, with UL approval, RoHS and REACH compliance. Suitable for electric vehicles, gaming machines, medical equipment, and industrial computer cases.

Features

• Zinc alloy die-cast housing and cylinder.

• Bright chrome plating as standard.

• S301: 5 disc tumbler mechanism, with 20 key combinations available.

• S301: Reversible double-bitted brass keys, nickel plated, with a plastic cover.

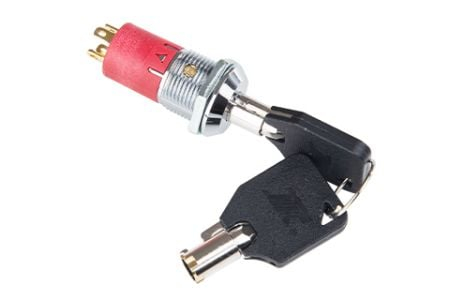

• S321: 7 pin mechanism, with a nickel-plated tubular key and plastic cover; up to 10,000 key combinations.

• Key may be withdrawn in one or both positions.

• Gold-plated contacts and terminals.

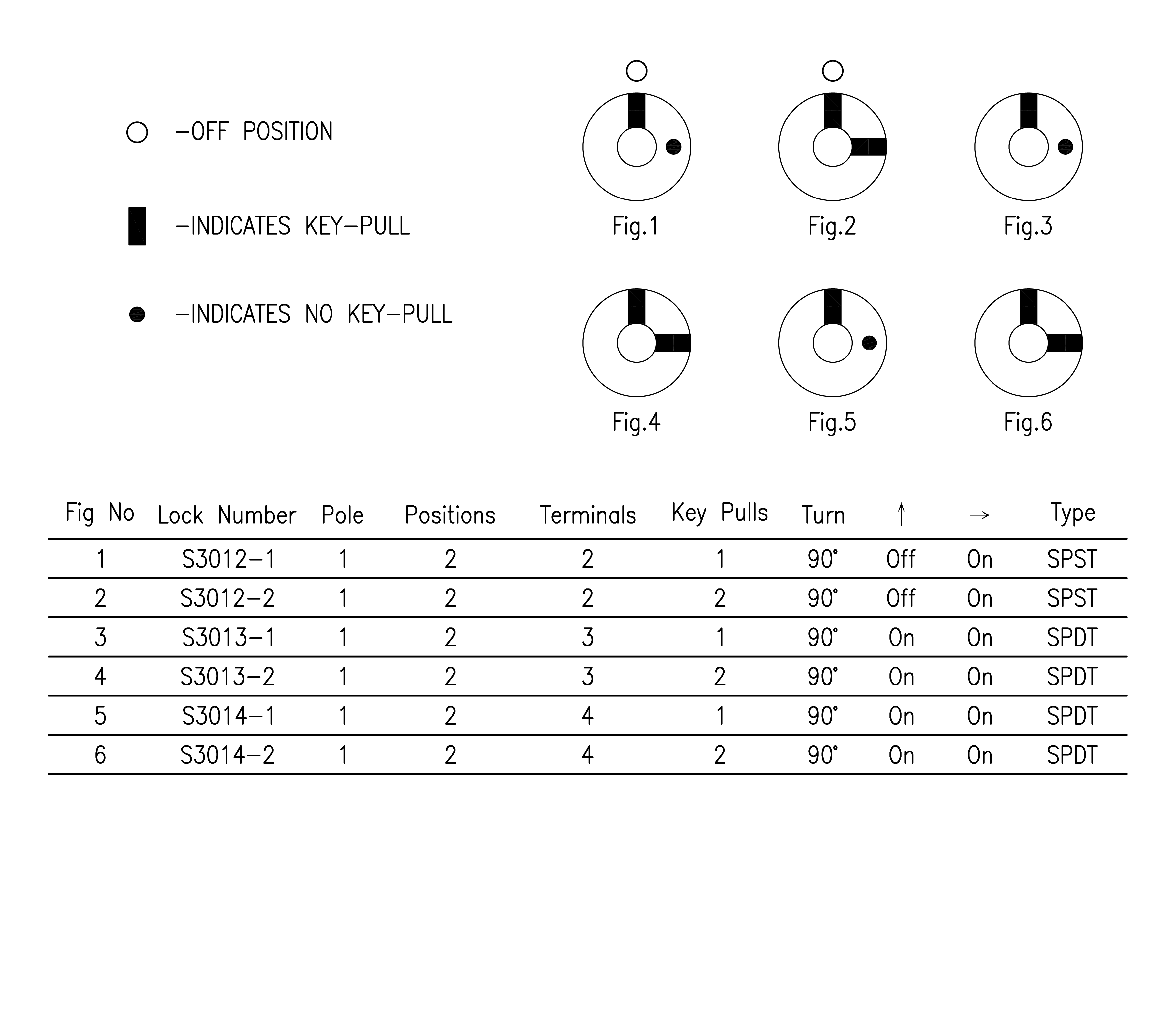

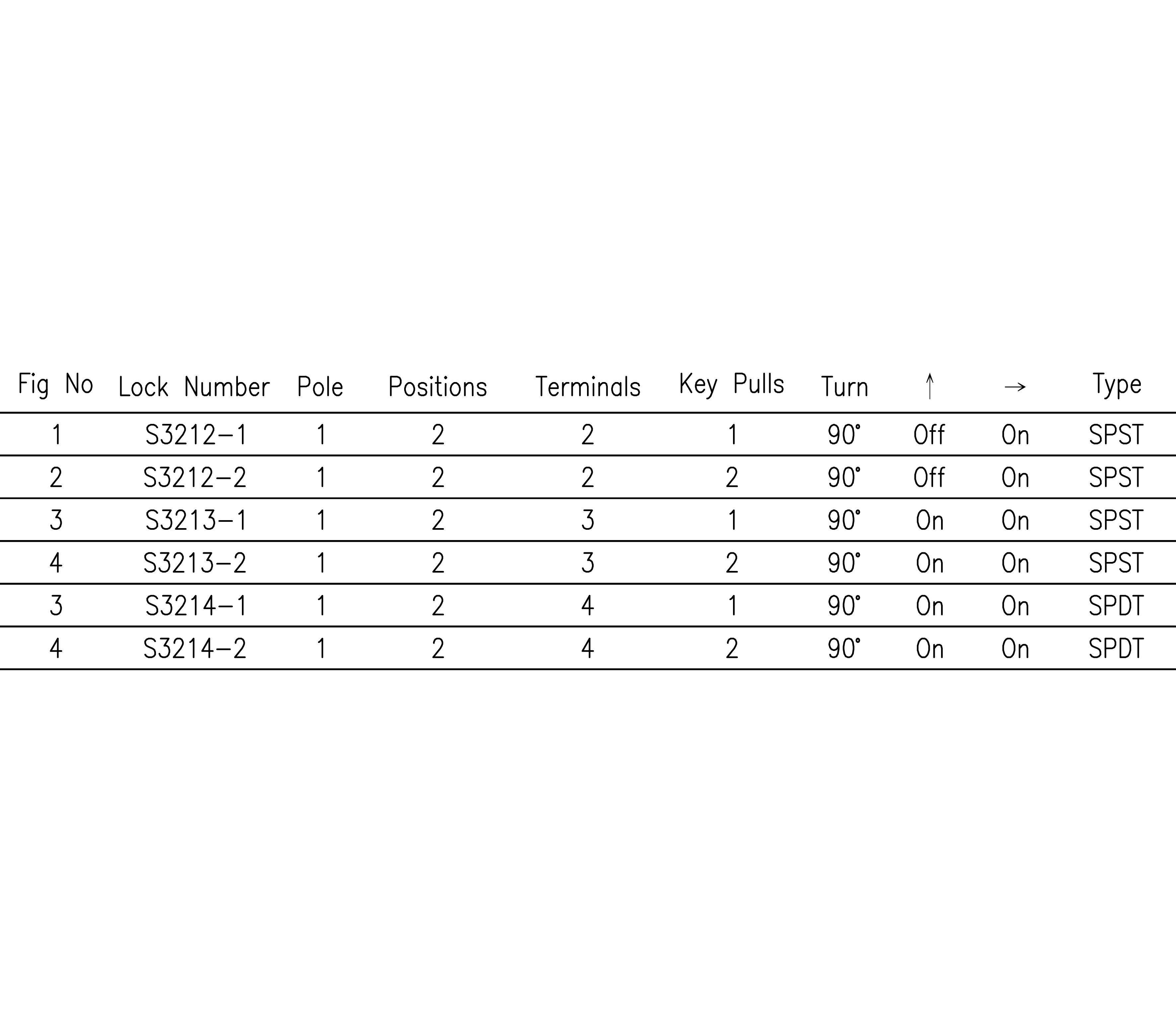

• S3012 / S3212: 2 positions (OFF-ON), 2 terminals.

• S3013 / S3213: 2 positions (ON-ON), 3 terminals.

• S3014 / S3214: 2 positions (ON-ON), 4 terminals.

• Hex nut or speed clip mounted.

Function Specification

• Contact Rating: 3A 125VAC, 2A 250VAC, 4A 28VDC

• Contact Resistance: 50 Milli-Ohms Max.

• Insulation Resistance: 109 Ohms Min.

• Dielectric Strength: 1000VAC for 1 Minute.

Order Information

• Refer to drawings, samples, and other relevant materials to confirm product specifications before placing an order.

• After the order is confirmed, cancellation or changes to the order contents are allowed within 7 days from the date the order is received.

• Delivery Time: Estimated delivery time for standard product orders of 3,000 pieces is within 45 days.

• The minimum order quantity is 500 pieces per lot. Quantity-based pricing is also available; please contact the sales team for details.

• Products can be customized according to customer requirements, including key combinations, parts configuration, wire soldering, surface treatment, key extraction positions, and additional anti-vibration, dust-proof, anti-static, and other functions.

• UL approval and RoHS 2.0 (2011/65/EU) compliant.

• Test reports for specified items can be provided upon customer request.

Frequently Asked Questions

Q: What is the S3012 series key switch lock?

A: The S3012 series (S3012, S3013, S3014, S3212, S3213, S3214) is Jin Tay's 16mm anti-vibration key switch lock family. The key provides physical authentication, ensuring that only authorized personnel can operate equipment or electrical circuits. Housing and cylinder are zinc alloy die-cast with plated contacts and terminals.

Q: Is the S3012 series waterproof or dustproof?

A: The S3012 series is rated IP65 per the IEC/EN 60529 standard—dust-tight and protected against water jets—verified by SGS third-party testing. This makes it suitable for equipment exposed to washdown, outdoor mounting, or dusty industrial environments.

Q: What switching configurations are available?

A: Jin Tay key switch locks support 2-position (OFF/ON, ON/ON) and 3-position (OFF/ON/ON, ON/OFF/ON, ON/ON/ON) switching, momentary spring-return positions, and special designs up to 8 positions, with up to 8 terminal pins and single- or dual-circuit switching. Wire-soldering processing is available for OEM orders.

Q: Where are S3012 series key switches used?

A: Typical applications include mobility scooters, golf carts, and forklifts (power authorization), plus industrial control boxes, servers, vending machines, lawn mowers, and alarm systems—anywhere vibration resistance and ingress protection matter.

Q: Are UL-certified versions available?

A: UL-certified options are available on part of Jin Tay's Key Switch Lock series for electrical safety verification in the US and Canada. Confirm model-level coverage against the specification sheet, or contact the Jin Tay sales team for details.
