Disc Tumbler Lock, Lock Switch

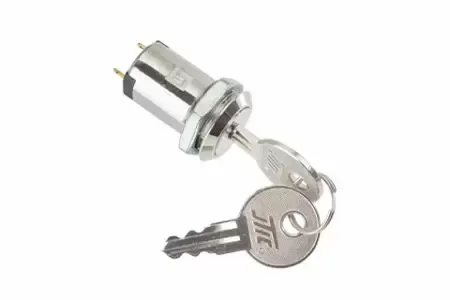

19mm key switch lock features reversible double-bitted brass keys, nickel plated. The key switch lock is made of zinc alloy die cast material housing and cylinder with bright nickel plated, 4 disc tumbler mechanism of silver plated contacts and terminals, reversible double-bitted brass keys with nickel plated for insert and pull out easily available for 25 key code combinations.
| Quantity: | |
|---|---|
The lock made with 2 positions assembled with 2 ~ 4 pieces terminals variation, S296 is made with 2 terminals (OFF-ON), S297 is made with 2 terminals (ON-OFF), S298 is made with 3 terminals (ON-ON), S299 is made with 4 terminals (ON-ON), lock is mounted by hex nut or speed clip that can process the lock with wire assembly, anti-drilled, laser engraved, stamping key code and machining depend on customer requested.
Passed life cycle test of 6,000 times, ROHS and REACH compliant.
Zinc alloy die cast housing and cylinder.
Nickel plated standard.
4 disc tumbler mechanism.
Reversible double-bitted brass keys, nickel plated.
Key may be withdrawn in one or both positions.
Silver plated contacts and brass terminals.

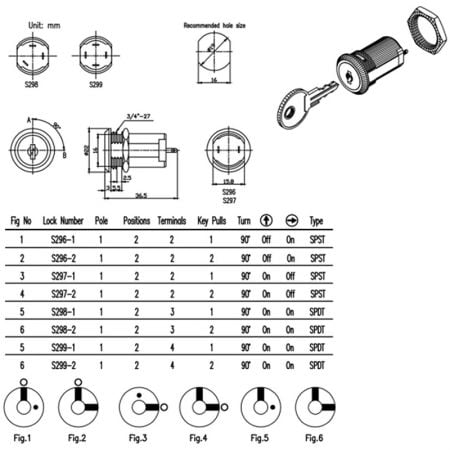

S296 2 position (off-on) 2 terminals.
S297 2 position (on-off) 2 terminals.
S298 2 position (on-on) 3 terminals.
S299 2 position (on-on) 4 terminals.
Hex nut or speed clip mounted.
All keyed alike or 25 combinations standard.
25 combinations available.
Contact Rating: 4A 125VAC, 2A 250VAC. 4A 28VDC
Contact Resistance: 50Milli-Ohms Max.
Insulation Resistance: 109 Ohm Min.
Dielectric Strength: 1000 VAC -1 Minute.
Refer to drawings, samples, etc. as the confirmation of product specification before placing the order.
After the order confirmed, the cancellation of the order or change the order contents can be allowed within 7 days from the date of receiving the order.
Delivery time: Estimated delivery time for standard product orders of 3,000pcs is within 45 days.
The minimum order quantity of the product is 500PCS/lot, and the order of "price based on quantity" also can be accepted (for details, please negotiate with the salesman)
Products can be customized according to customer requirements, as: Key combination, parts configuration, wire soldering process, surface treatment, key extraction position, adding anti-vibration, dust-proof, anti-static, and other functions.
UL approval and RoHS 2.0 (2011/65/EU) compliant.
The test report of the specified project can be provided according to the customer requested.
