S2985

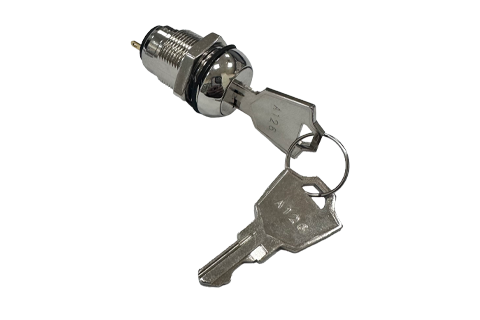

S2985---IP65 Waterproof Anti-Vibration Locking Switch
. Zinc alloy die cast housing and cylinder.
. Bright nickel plated standard.
. Anti-vibration function.
. 4 disc tumbler mechanism.
. Brass keys, nickel plated.
. Key may be withdrawn in one or both positions.
. Golden plated contacts and terminals.

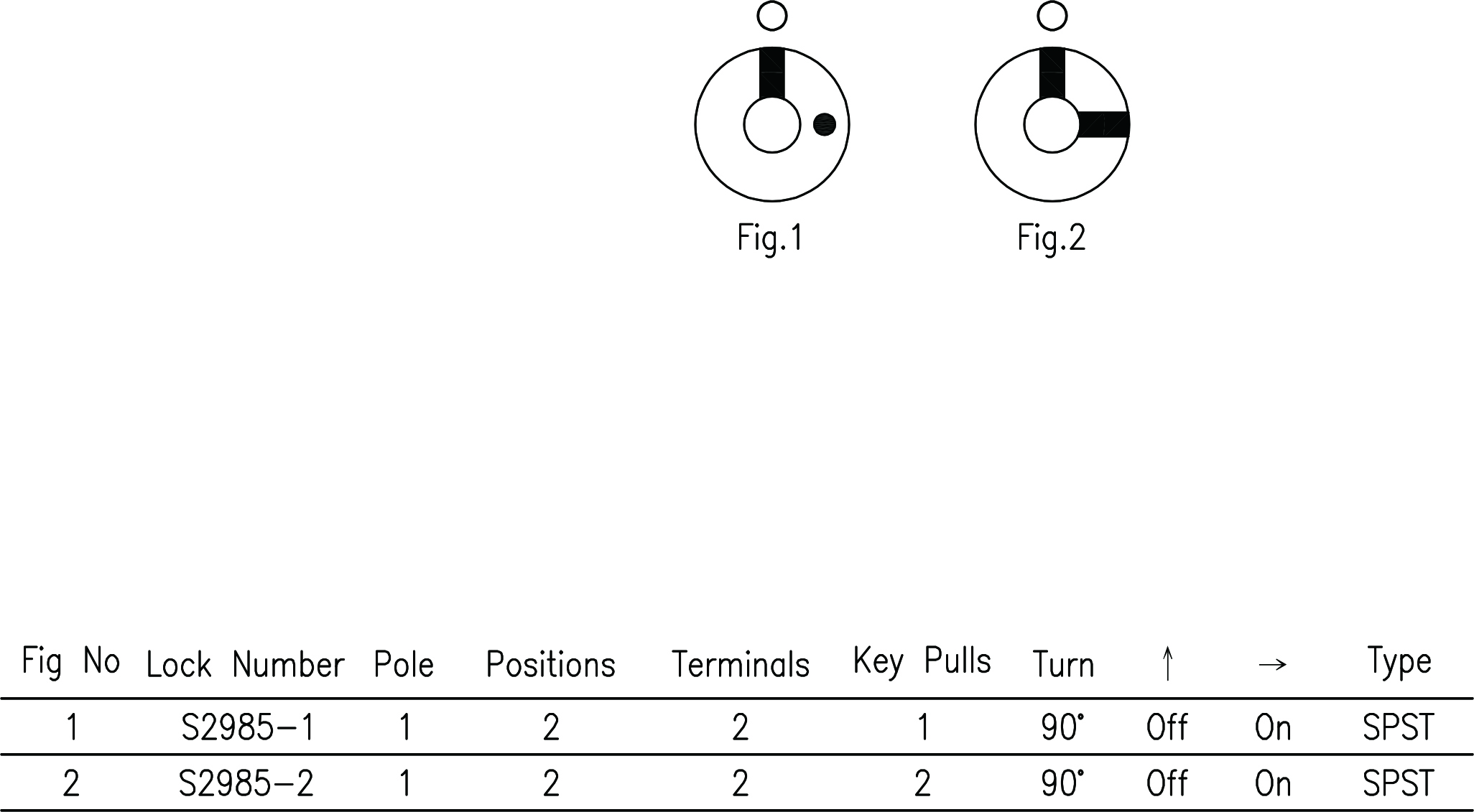

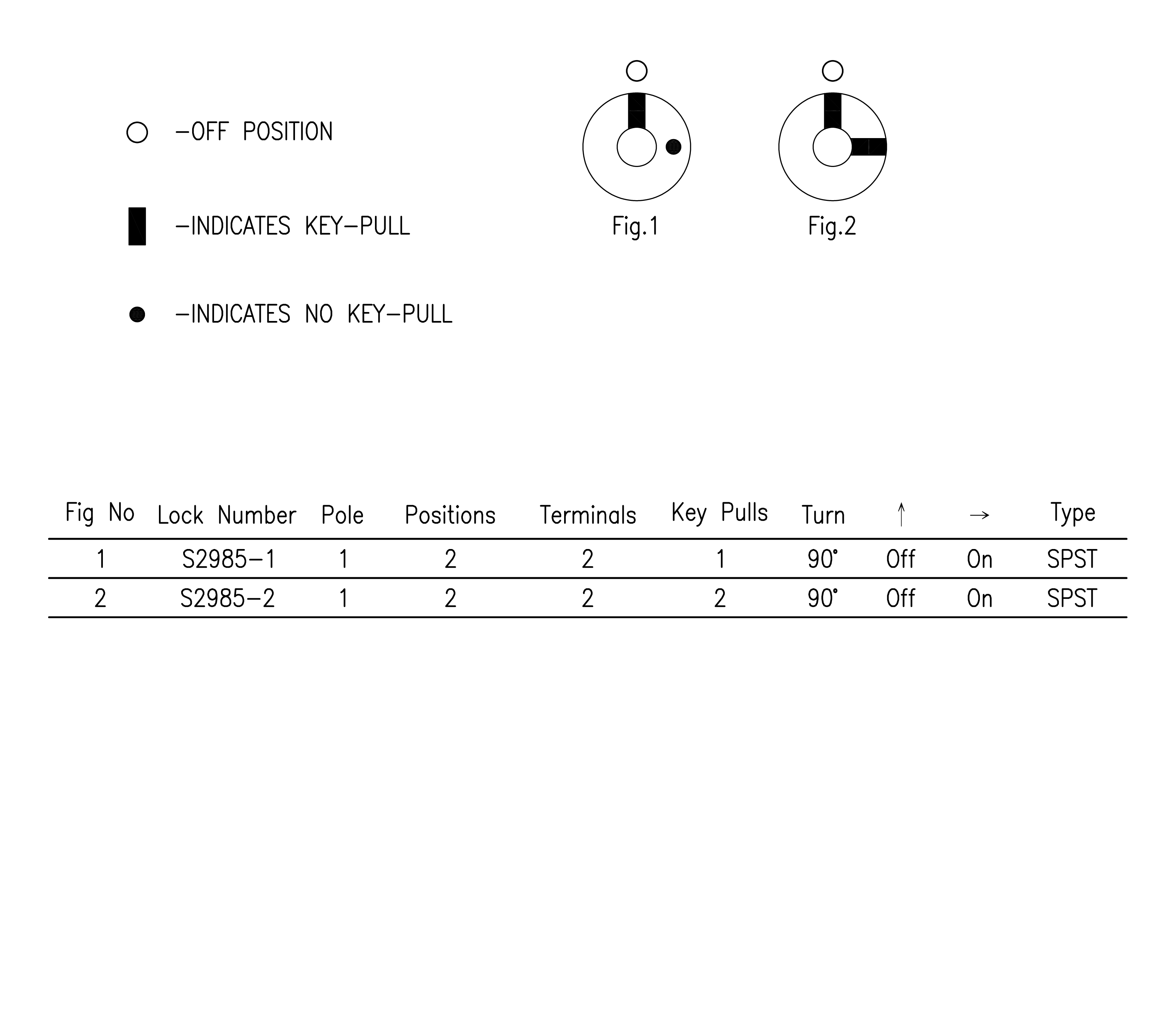

. 2 position (off-on) 2 terminals.
. Hex nut mounted.
. All keyed alike or 10 combinations standard.
. 25 combinations available.
. Meets IP65 standard
SPECIFICATION
. Contact Rating: 4A 125VAC, 2A 250VAC, 4A 28VDC
. Contact Resistance: 10Milli-Ohms Max.
. Insulation Resistance: 109 Ohm Min.
. Dielectric Strength: 1500 VAC -1 Minute.
