S305

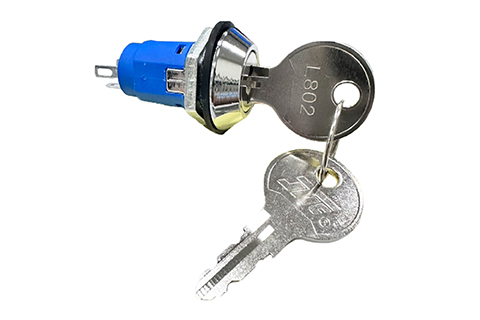

S305---IP65-Rated Multifunction Waterproof Power Lock
. Zinc alloy die cast housing and cylinder, with rubber washer
. Bright chrome plated standard.
. 5 disc tumbler mechanism.
. Reversible double-bitted brass keys, nickel plated.
. Key may be withdrawn in one or both or three positions.
. Silver plated contacts and terminals.

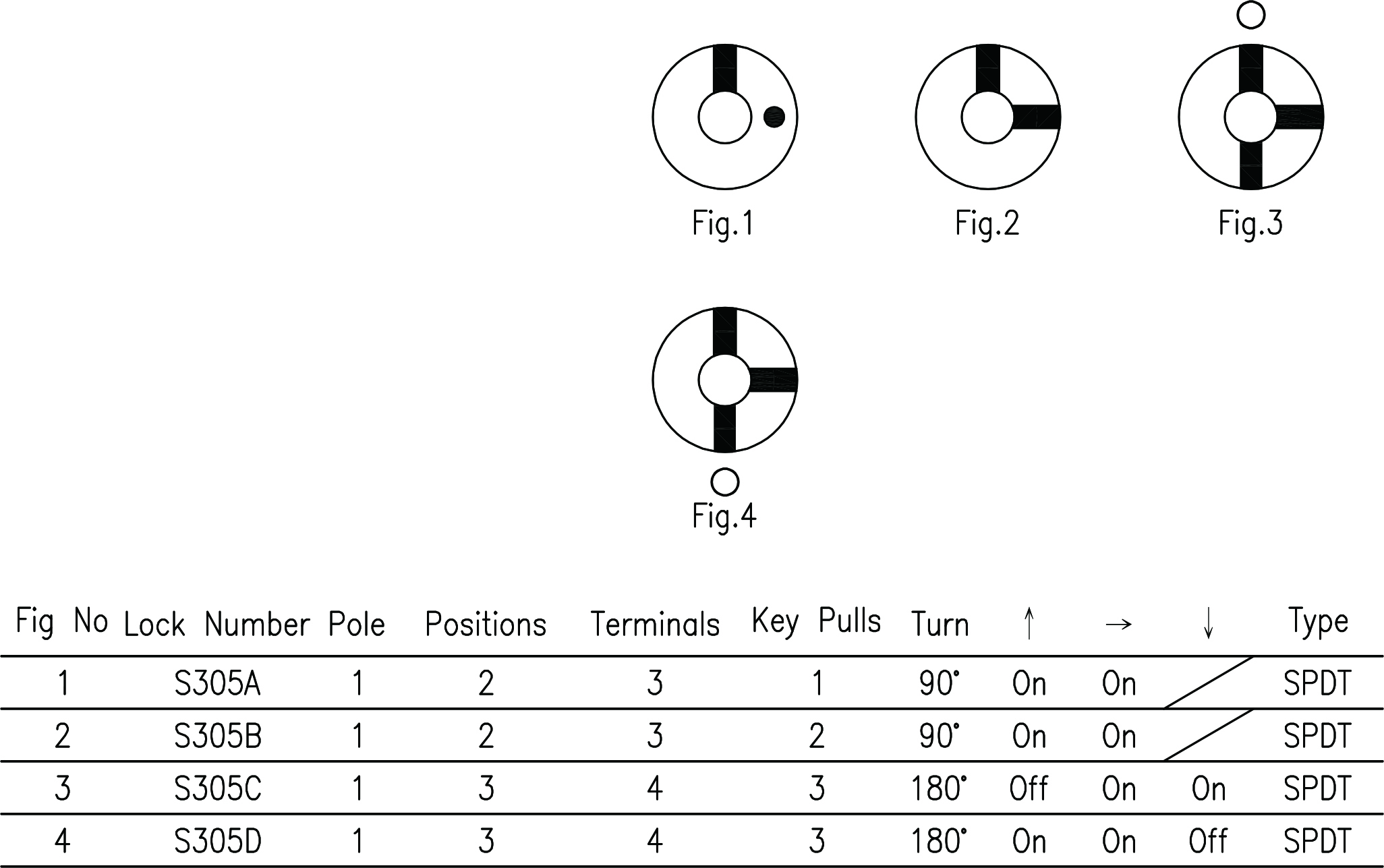

. S305A 2 position (on-on) 3 terminals.
. S305B 2 position (on-on) 3 terminals.
. S305C 3 position (off-on-on) 4 terminals.
. S305D 3 position (on-on-off) 4 terminals.
. Hex nut mounted.
. All keyed alike or 50 combinations standard.
. 50 combinations available.
. Meets IP65 standard
SPECIFICATION
. Contact Rating: 1A 125VAC, 2A 250VAC, 4A 28VDC
. Contact Resistance: 50Milli-Ohms Max.
. Insulation Resistance: 108 Ohm Min.
. Dielectric Strength: 1000 VAC -1 Minute.
