iT603N
Dual unlocking methods: NFC-IC card (contactless) and 4–6 digit password.
Rugged construction: Zinc-alloy lock body with satin/sand nickel plating; IP54 waterproof & dustproof; operating range −20°C to +75°C.
Power & emergency: 4 × AAA batteries (primary) + Micro-USB port for emergency power supply. Low-battery warning and ultra-low standby current.
User & admin management: Management (setup) card + user cards; password groups for flexible multi-user usage.
Operation feedback: LED indicator and beep sound for clear user interaction.
Durability: Motor drive mechanism with long switch life (manufacturer specs provide >30,000 cycles on one page).
| Specification | iT603N (details) |
|---|---|
| Model | iT603N |
| Body material & finish | Zinc alloy, sand / satin nickel plated. |
| Unlock methods | NFC-IC card (13.56MHz ISO14443A), numeric password. |
| NFC / card capacity | Supports configuration of up to 100 proximity/NFC cards (factory ships with cards). |
| Password capacity | 10 password groups (4–6 digits each). |
| Power | 4 × AAA batteries; Micro-USB emergency power. |

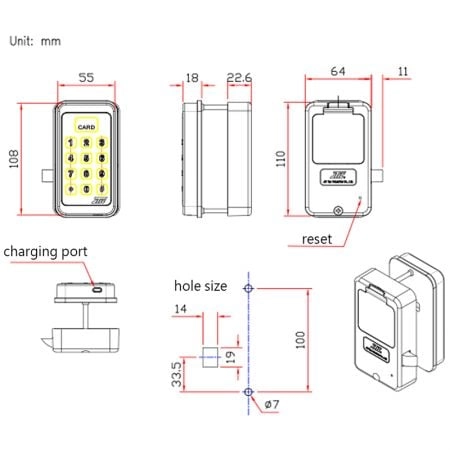

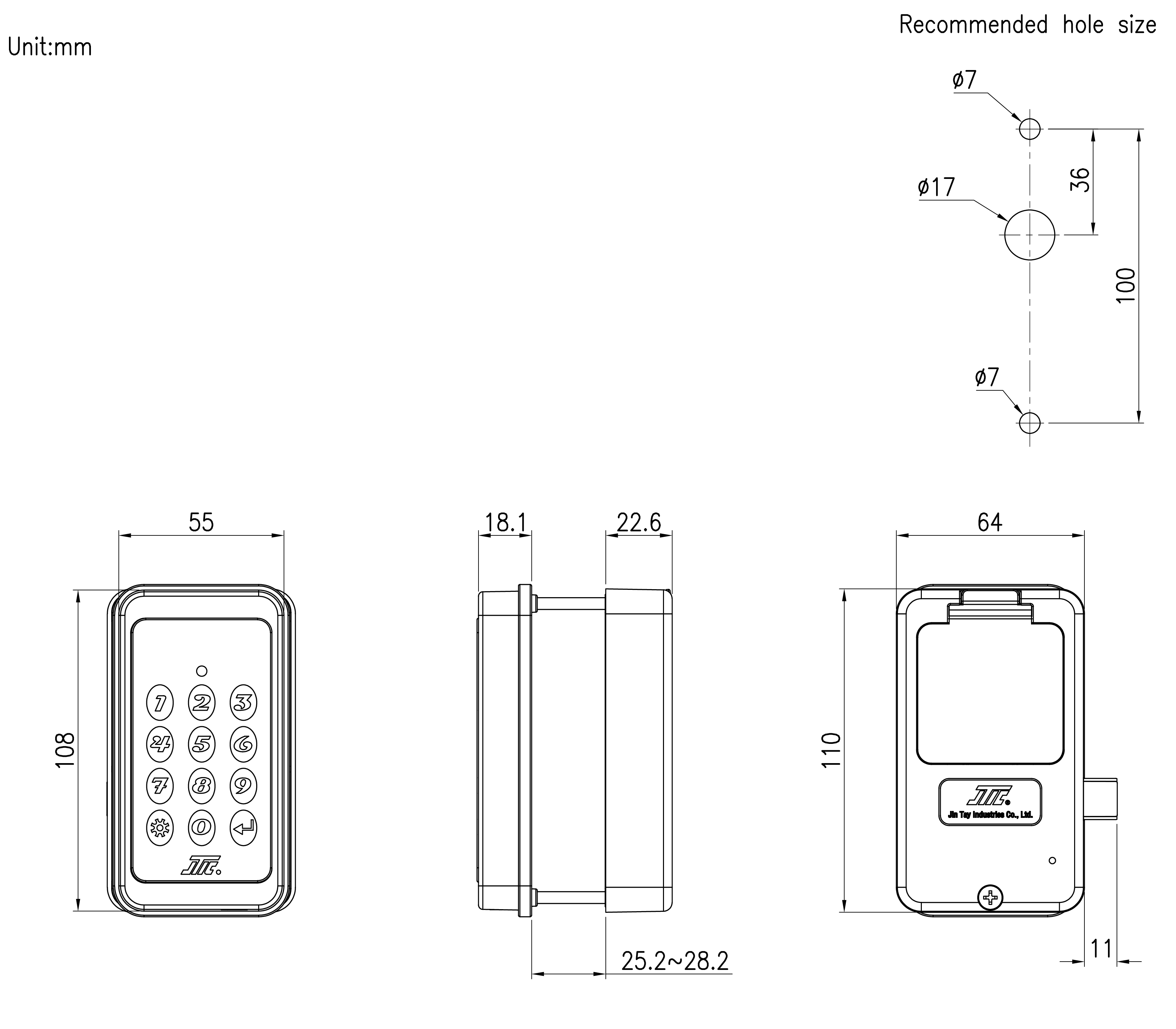

| Appearance size | 55.4 mm × 108.5 mm × 43 mm. |
| IP rating / Temp | IP54; −20°C ~ +75°C. |
| ESD / anti-static | 8 kV. |
| Standby current | < 30 μA. |
| Working current | ~150 mA. |
Provisioning (admin): Use the management/setup card to register user NFC cards and to enable password groups.
User access: Present a registered NFC card or enter a configured 4–6 digit password to unlock. LED and beep confirm the operation.
Power fail / emergency: If batteries are drained, supply emergency power via Micro-USB to perform unlocking. Low battery alerts help avoid lockouts.
Q: How many NFC cards can I register?
A: The detailed product specification lists support for up to 100 proximity/NFC cards; some product pages list a smaller “10 pieces” value. For project quoting or high-volume deployment please confirm the exact configuration with Jin Tay sales.
Q: What happens when batteries run out?
A: The iT603N uses 4 × AAA batteries for main power and provides a Micro-USB emergency power input to allow unlocking if batteries are depleted. Low-battery warnings are provided.
Q: Is the lock suitable for outdoor use?
A: The iT603N is IP54 rated (dust-protected and splash resistant) and operates from −20°C to +75°C. It is designed for semi-exposed environments but not for full immersion.
Q: Can the lock be used in shared locker systems?
A: Yes — the iT603N supports management cards, multiple user cards and password groups, making it well suited for shared/public usage scenarios.

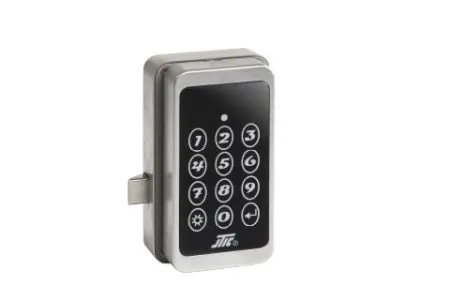

Locker lock iT603N.
