| Quantity: | |
|---|---|
| Item | Details |
|---|---|

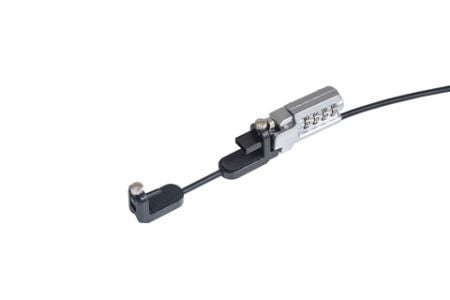

| Product Name | Ultra-Thin Notebook Password Lock |

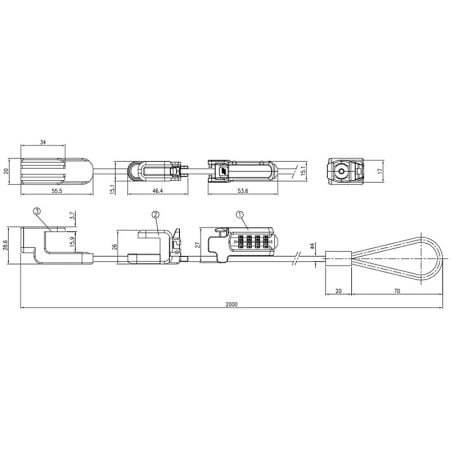

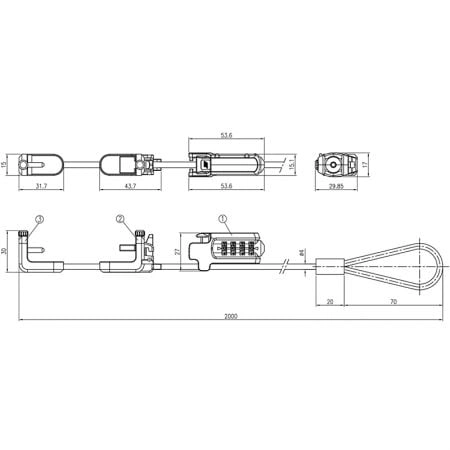

| Models | C9810 (USB + Power jack), C9813 (USB + Earphone jack) |
| Combination | Resettable 4-digit wheels, up to 10,000 codes |
| Housing Material | Zinc alloy die-cast, brush chrome plated |
| Cable | 200 cm (2.0 m) length, 4 mm diameter stainless-steel wire with black PVC cover |
| Lock Head Material | PC (USB jack + Power jack / USB jack + Earphone jack) |
| Weight | Lightweight, portable design |
| Compliance | RoHS 2.0 (2011/65/EU), UL approval optional |
| Packaging | Standard paper box |
| Origin | Made in Taiwan, quality assurance |
| MOQ | 500 PCS/lot |
| Delivery Time | Approx. 45 days for 3,000 PCS (standard order) |
| Customization | Key combination, parts configuration, soldering process, surface treatment, anti-vibration, dust-proof, anti-static options |
Keyless 4-digit security: Easy to set and reset, eliminates lost-key risks while offering 10,000 code combinations.
Designed for ultra-thin notebooks: Works with notebooks that lack standard keyed security slots — secures USB and power/earphone jacks with a double-headed lock.
Durable materials: Zinc alloy housing plus stainless-steel core cable for reliable anti-theft protection.
Portable & lightweight: 2.0 m cable packs easily for travel, classrooms, or field work.
Compliance & traceability: Option for UL approval and RoHS-compliant manufacturing with test reports available.
OEM/ODM friendly: Supports configuration and functional customization for institutions and distributors.
Align the double-headed lock ends with the target ports (USB + power or USB + earphone).
Insert both lock heads into the port openings until the mechanism engages.
Set your 4-digit code on the wheels (follow included quick-start guide).
Confirm the lock is secure by gently pulling the cable.
To unlock, enter the 4-digit code and withdraw the lock heads.
Tip: Keep the default factory code changed on first use; record the chosen code securely for institutional use.
Q: Will this lock damage USB/power/earphone ports?
A: Designed to secure ports without damaging them when used correctly. Use gentle alignment and follow the included quick-start guide. For delicate or proprietary ports, check with our technical team.
Q: How do I reset the 4-digit code?
A: A reset procedure is included in the user guide. For institutional bulk deployments, request preconfiguration services from sales.
Q: Is the cable cut-resistant?
A: The lock uses a 4 mm stainless-steel core covered with black PVC; it offers strong resistance to casual tampering. For high-security sites, consider additional physical security policies.
Q: Can you customize the lock for my brand?
A: Yes — we offer OEM/ODM customization (surface treatment, labeling, parts configuration). Minimums and lead times apply.
