VT510, VT650
| Item | VT510 | VT650 |
|---|---|---|
| Key type | Tubular (steel tubular key) | Flat key (steel, nickel plated) |
| Cylinder / tumbler | 7-pin tumbler mechanism (high combination capacity) | 5-disc tumbler mechanism |
| Combination capacity | Up to 10,000 possible groups | Up to 100 groups |
| Key withdraw positions | Withdrawable in 1 or 4 positions | Withdrawable in 2 or 4 positions |
| Standard “L” (screw) length | 35.4 mm (other lengths on request) | 30.8 mm (other lengths on request) |
| Thread on shaft | Standard 5/16″-18 | Standard 5/16″-18 |
Choose VT510 when you need higher security and a large number of unique key combinations (tubular 7-pin design, up to 10,000 combos). Ideal for vending networks and installations where many unique keys are required.
Choose VT650 when you want a reliable, cost-effective flat-key solution with simpler key management (5-disc, up to 100 combos), suitable for small fleets or keyed-alike runs.
Keying options: all-keyed-alike, keyed-differently (25 combinations standard) and large combination sets available (100 / 10,000 depending on model).
Mounting: fixed by hex nut or speed clip for secure installation; standard shaft thread 5/16″-18.
Adjustable screw length & processing: standard lengths provided (VT510 L=35.4mm; VT650 L=30.8mm); cut-to-lengths and special machining (anti-drilling, marking numbers, laser engraving, tapping, CNT) available per customer request.
Q: Can the screw length (“L” dimension) be changed?
A: Yes — standard lengths are VT510 = 35.4 mm and VT650 = 30.8 mm; custom lengths are available on request.
Q: Are keyed-alike and keyed-different options available?
A: Yes — you can order all keyed-alike runs or specify unique keying ranges (standardized groupings available).
Q: What is the standard finish?
A: Bright chrome plating is standard; other surface treatments can be requested.

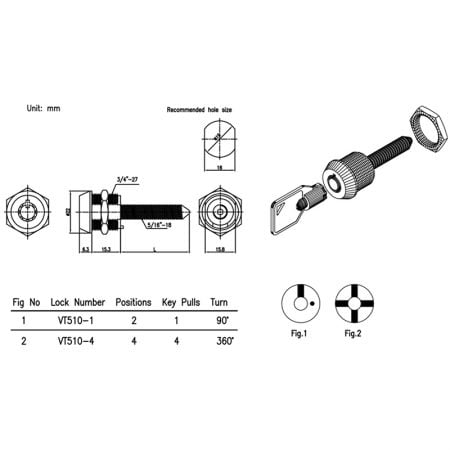

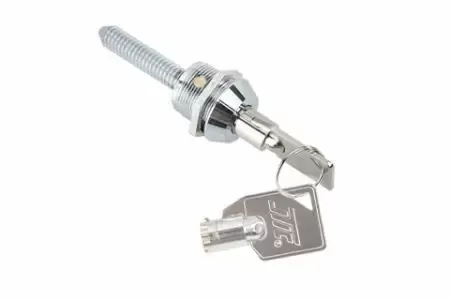

VT510 Cam Lock Spec.

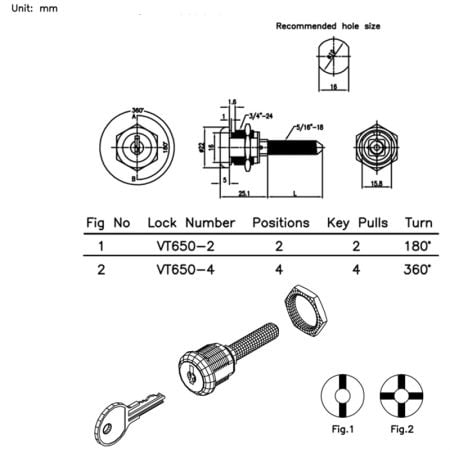

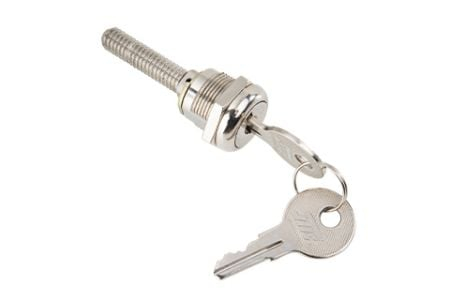

VT650 Cam Lock Spec.
