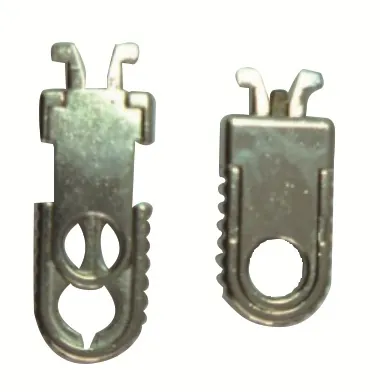

C919-P*
| Model | Wire Hole (Ø) | Foot Width | Foot Thickness |
|---|---|---|---|
| C919-P1 | Ø 6.4 mm | 10.0 mm | 2.0 mm |
| C919-P11 | Ø 6.7 mm | 10.0 mm | 2.0 mm |
| C919-P15 | Ø 6.4 mm | 10.0 mm | 1.5 mm |
Special: 3×7 K-hole foot pin intended for notebook compatibility.
Note: Additional wire diameters and pin thicknesses can be produced per customer request.
Material: High-strength zinc alloy core for impact resistance and long service life.
Finish: Nickel plating for enhanced scratch and corrosion resistance.
Variability: Multiple pin thicknesses (1.5 mm / 2.0 mm) and wire-hole diameters (Ø 6.4 / Ø 6.7 mm) for precise fit.
Durability: Designed to withstand repeated insertion/removal and cable stress; suitable for daily commercial use.
Quality & Compliance: UL approval available (upon request) and RoHS 2.0 (2011/65/EU) compliant. Test reports can be provided per customer request.
Jin Tay supports OEM/ODM customizations:
Key combination & cylinder matching.
Parts configuration and wire soldering process.
Surface treatment options (plating types, finishes).
Key extraction position adjustments.
Add-on functions: anti-vibration, dust-proofing, anti-static treatments.
Custom sizes: wire diameter and pin thickness tailored to customer drawings or samples.
Ordering & confirmation: Refer to drawings or physical samples for specification confirmation prior to placing the order.
Q: Can you provide samples or drawings?
A: Yes — drawings and samples are used to confirm product specifications before order placement.
Q: Are these products RoHS / UL compliant?
A: The product is RoHS 2.0 (2011/65/EU) compliant. UL approval and specified test reports can be provided upon request.
Q: Can you customize keying or add dust-proof/anti-vibration features?
A: Yes — key combinations, parts configuration, surface treatments, anti-vibration, dust-proofing and anti-static options are available.
Q: How to select the right model for my laptop?
A: Measure the K-slot dimensions and confirm required cable diameter. Choose the model whose wire-hole Ø and foot thickness best match your mechanical and space requirements; samples or drawings are recommended for final confirmation.

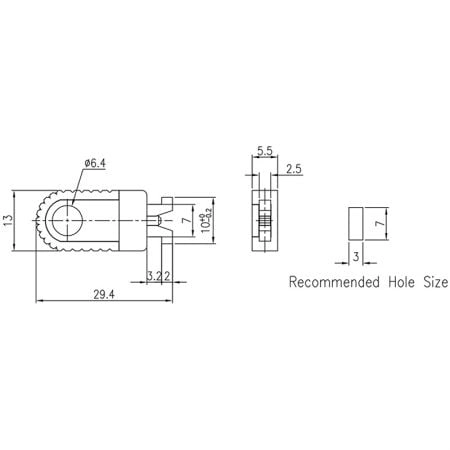

C919-P1 SPEC.
C919-P11 SPEC.

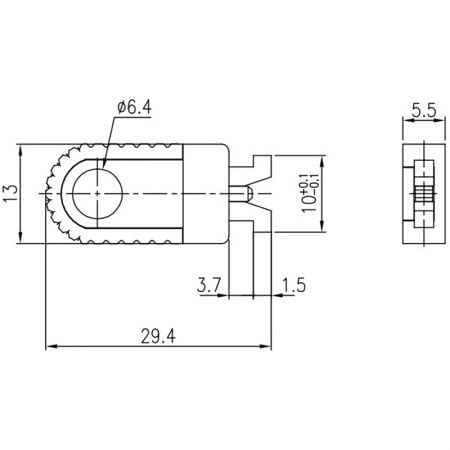

C919-P15 SPEC.
