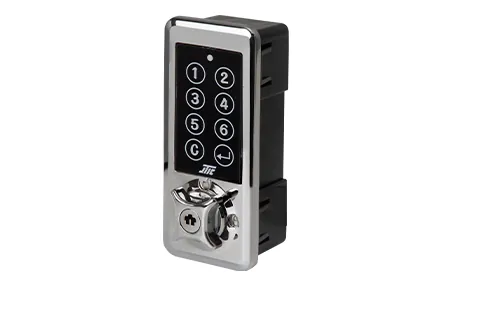

The multi-functional push-button electronic locker lock can program multiple sets of password changes by touching a combination of buttons with different numbers and word sizes.Using a one-time password setting, LED lights and beep sounds guide the user to operate and set directly on the cabinet. After the setting is completed, it can be opened without a key. There is a clear button on the back to return to the original factory settings. .Equipped with low battery reminder and emergency MIRCO USB power supply settings to maintain power supply.
Zinc alloy lock body, sand nickel panel, each lock comes with 2 keys, you can choose electronic password unlocking or mechanical key unlocking, which is very convenient.It is equipped with a management key and can be designed as a master key. It is suitable for lockers and cabinets in public places such as school dormitories, gyms, swimming pools, etc. for multiple people to use.
In response to different usage environments, it can be used on wooden or iron cabinets. It is suitable for cabinets with a thickness of 0.7~1.2mm or 17~19mm. Panels can also be customized according to customer needs.
Product Features
* Push-button zinc alloy lock body, sand nickel panel, each lock comes with 2 keys.
* Multifunctional management key---enable/decode/reset number and other functions.
* Various combinations of numbers can be created by combining letters and numbers.
* The decoding function can be operated directly at the counter.
* There is a clear button on the back to return to the original factory settings.
* LED lights and beeps guide operations.
* Ultra-low standby function.
* Low battery reminder function.
* The management key can be designed as a master key.
* Suitable for public or private use.
* Product specifications/parameters
* Appearance size: 115mm x 50mm x 38mm
* Unlocking method: password, mechanical key
* Public mode: one-time password
* Personal mode: password + key
* Number of password groups: 10 groups, each group has 4~6 digits
* Unlock alarm: tentative unlock alarm
* Waterproof/dustproof: IP54
* Lightning protection: motor isolation method
* Anti-static: 8Kv
* Rated voltage: DC3v
* Working current: 150mA
* Working temperature: -20℃ ~ 75℃
* Working humidity: < 95%RH
* Standby current: < 30uA
* Battery specifications: 2 AA batteries
* Number of switches: > 50,000 times
* Drive mode: motor drive
Ordering information
* You can use drawings, samples, etc. to confirm product specifications before placing an order.
* After the order is established, order cancellation or order content changes can be accepted within 7 days from the date of order receipt.
* Delivery time: The estimated delivery time for standard product orders within 3,000 PCS is 45 days.
* The minimum order quantity of the product is set to 500PCS/LOT, and orders under the 'price based on quantity' model are also accepted (please discuss the details with the salesperson).
* Products can be customized according to customer needs.
* Complies with RoHS 2.0 (2011/65/EU) standards.
* Test reports for specified projects can be provided according to customer requirements.

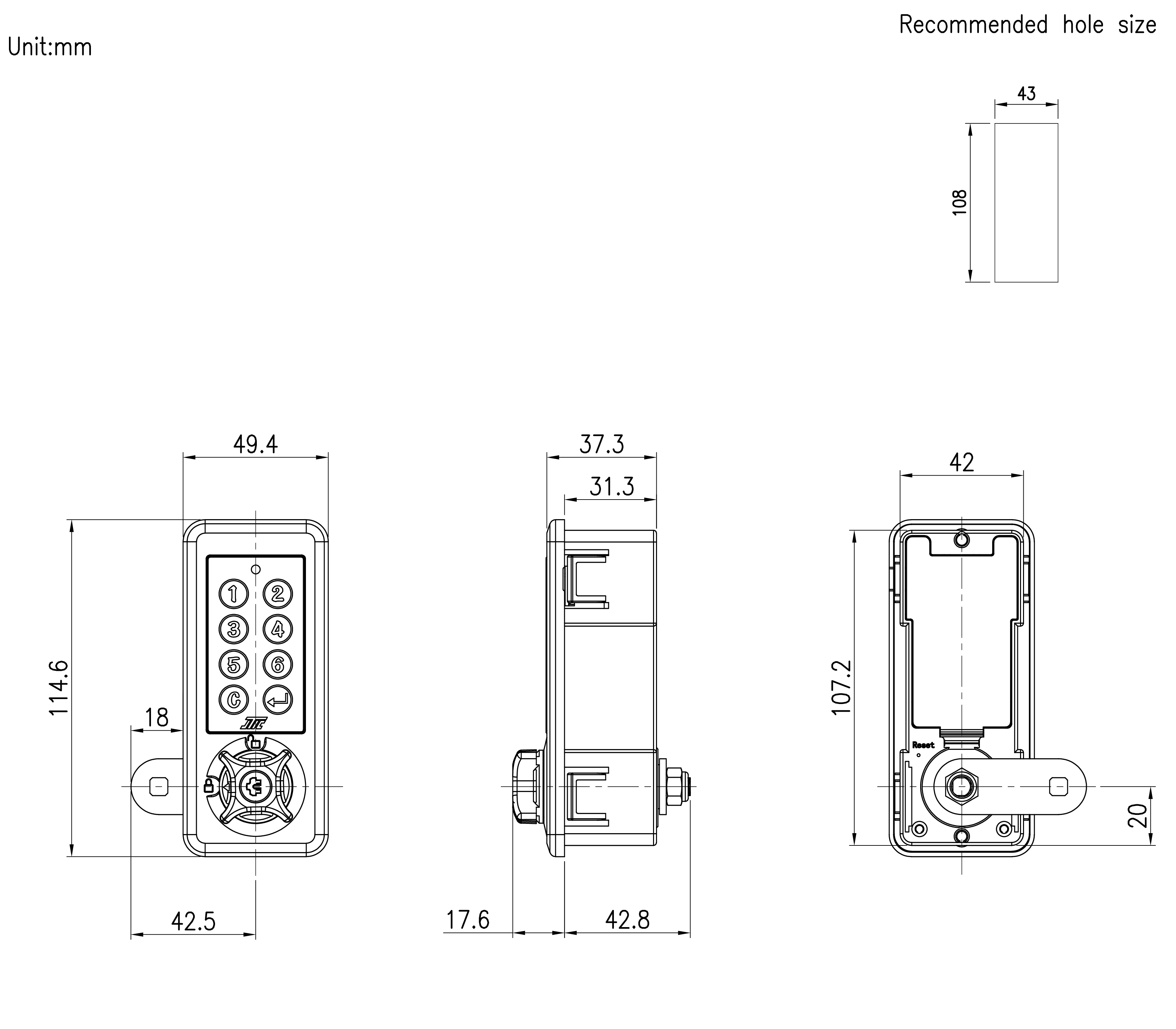

![rd_it602-p1]()
Introduction to Jin tay Electronic Password Mechanical Button Cabinet Lock
Jin Tay Industries Co., LTD. is a professional electronic password mechanical button Cabinet Lock design and manufacturing enterprise in Taiwan with more than 45 years of experience.We were founded in 1980. In the field of manufacturing various locks and related hardware parts, Jin tay provides professional and high-quality electronic password mechanical push-button manufacturing services. Jin tay can always meet customers' various quality requirements.
Jin tay invites you to browse our products and services and contact us immediately.
Sales method: manufacturing, wholesale, cooperation, export
Sales target market: Taiwan, Mainland China, Hong Kong, Singapore
competitive characteristics
Excellent quality: JTIC iT602M electronic password mechanical push button made of zinc alloy lock body Cabinet Lock
Diverse designs: Jin Tay Industries Co., LTD. provides diversified designs of iT602M electronic password mechanical button type Cabinet Lock
iT602M electronic password mechanical push button Cabinet Lock accepts original factory commissioned design and manufacturing ODM
iT602M electronic password mechanical push button Cabinet Lock accepts original factory entrustment for OEM manufacturing
