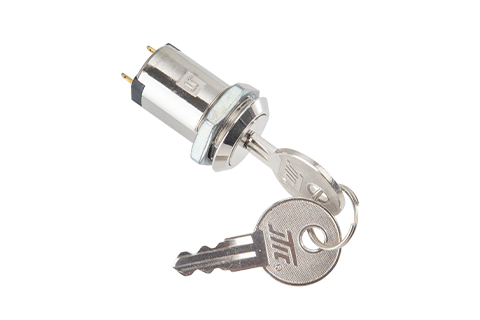

19mm outer diameter 4pinKey Switch Lock (including double-sided milled copper key switch)

19mm outer diameter 4pinKey Switch Lock (including double-sided milled copper key switch)

S296, S297, S298, S299

Switch lock, micro switch, plate lock, combination lock



19mm outer diameter Key Switch Lock switch, zinc alloy die-cast lock core and shell nickel-plated, flat key copper nickel-plated, double-sided milled teeth for easy insertion and removal, 4 plate structures and 25 number changes.The outer diameter Key Switch Lock switch has passed 6000 times of life test and complies with ROHS and REACH standards.Suitable for electronic boxes, power supplies, security systems, control boxes, cash registers, and electrical boxes.



Ask now

product specifications

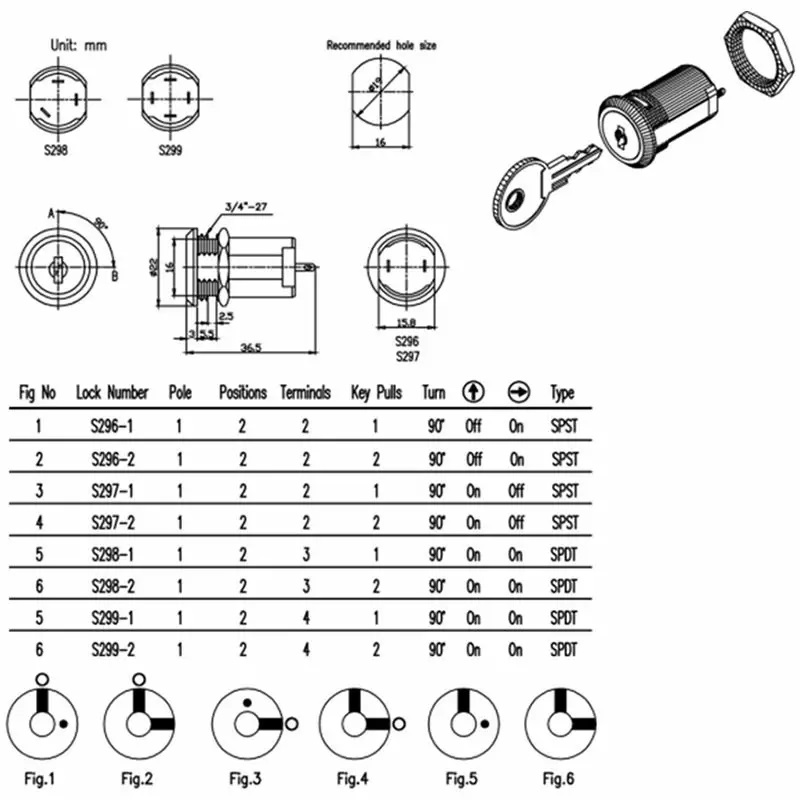

The 19mm outer diameter 4pin Key Switch Lock silver-plated contacts and brass flat terminal feet are two-stage specifications, with 2 to 4 terminal pins. S296 has 2 terminal pins (OFF-ON), and S297 has 2 terminal pins. Terminal pins (ON-OFF), S298 has 3 terminal pins (ON-ON), S299 has 4 terminal pins (ON-ON), the lock is installed with a hexagonal nut or insert, and processing steps can be added according to customer needs. Such as: wire welding, anti-drilling, laser engraving, marking, car repair...etc.



Contact capacity: 4A 125VAC, resistance: 10Milli-Ohms Max.Insulation resistance: 109 Ohm Min.Withstand voltage: 1000VAC-1Minute.



Product Features

Zinc alloy lock shell, lock core, rolled nickel plating.

4 rows of pieces designed.

Double-sided milled brass key, nickel plated.

Keys can be drawn single or double.

Silver plated contacts and terminals.

S296 2 terminals, power on mode off-on.

S297 2 terminals, power on-off mode.

S298 3 terminals, power on-on mode.

S299 4 terminals, power on-on mode.

The lock head is fixed by hexagonal nut or insert.

Standard products are the same number or 25 sets of key combinations.

There are up to 25 key combinations.

Telecommunications specifications

Contact load resistance value: 4A 125VAC, 2A 250VAC

Contact ohm value: 50Milli-Ohms Max

Insulation resistance: 109 Ohm Min

Maximum withstand voltage: 1000VAC-1Minute

Ordering information

You can use drawings, samples, etc. to confirm product specifications before placing an order.

After the order is established, order cancellation or order content changes can be accepted within 7 days from the date of order receipt.

Delivery time: The estimated delivery time for standard product orders within 3,000 PCS is 45 days.

The minimum order quantity of the product is set to 500PCS/LOT, and orders under the 'price based on quantity' model are also accepted (please discuss the details with the salesperson).

Products can be customized according to customer needs, such as: number of key number sets, parts configuration, wire welding processing, surface treatment, key extraction position, and added shockproof, dustproof, anti-static and other functions.

Meets UL certification and complies with RoHS 2.0 (2011/65/EU) standards.

Test reports for specified projects can be provided according to customer requirements.

Sales method: manufacturing, cooperation, export
Sales target market: Taiwan, global
Payment method for inquiry: TT wire transfer

competitive characteristics
Excellent quality: JTIC19mm outer diameter 4pinKey Switch Lock made of zinc alloy (including double-sided milled copper key switch)
Diverse designs: Jin Tay Industries Co., LTD. provides diversified designs of 19mm outer diameter 4pinKey Switch Lock (including double-sided milled copper key switch)
19mm outer diameter 4pinKey Switch Lock (including double-sided milled copper key switch) accepts original factory commissioned design and manufacturing ODM
19mm outer diameter 4pinKey Switch Lock (including double-sided milled copper key switch) is accepted for OEM manufacturing.
