Name: 12mm outer diameter multi-section Key Switch Lock (including single-sided milled copper key lock switch)
Brand: JTIC
Rating: 5.0 (93 reviews)

Products

Jin Tay - A professional manufacturer that designs and manufactures various types of locks and hardware.

Home / Product Category / Key Switch Lock / Diameter Switch Lock / 12mm outer diameter multi-section Key Switch Lock (including single-sided milled copper key lock switch)

Model:
S10123 S10133 S10134 S10144 S10145
Brand:
JTIC

Product Description

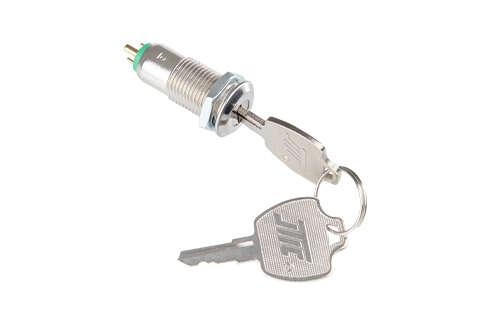

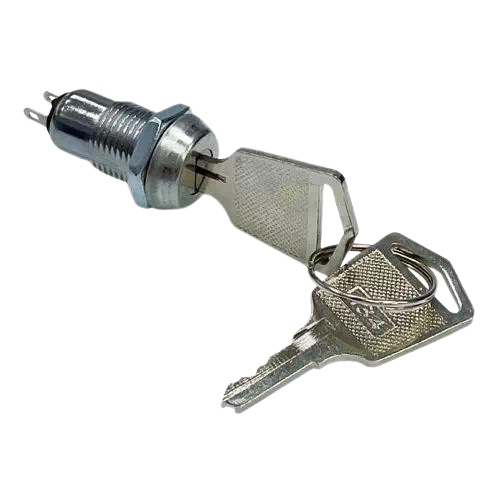

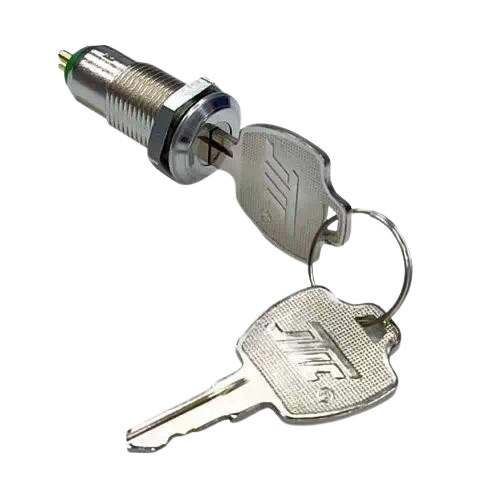

12mm outer diameter multi-section Key Switch Lock (including single-sided milled copper key lock switch)

S10123, S10133, S10134, S10144, S10145, S109B, S1091B

Micro switch, switch lock, plate arrangementKey Switch Lock

12mm outer diameter multi-stage power switch lock. Its lock core and shell are made of zinc alloy die-casting. The surface is nickel-plated. It has 4 rows of blades. The brass flat key has single-sided milled teeth and is nickel-plated.S1091B is specially designed with thin head and can produce 14 sets of number changes.The single number is 134, the surface treatment of contacts and terminals is gold-plated, and there are 2 to 4 levels of design. The number of terminal pins varies from 2 to 5 according to specification requirements. A variety of models and functions are available for customers to choose from, and additional processing can be added according to customer needs. For processes such as wire welding, numbering, etc., the lock head is installed and fixed with a hexagonal nut.

Ask now

Contact capacity: 0.2A 125VAC, passed 6,000 life test combinations, complies with ROHS and REACH, suitable for alarm systems, instrument control, and communication systems.

Product Features

Zinc alloy lock shell, lock core, nickel plating.

The lock shell is covered with a tin cover.

4 rows of pieces designed.

Single edge milled brass key, nickel plated.

There are various specifications for the key extraction position.

Gold plated contacts and terminals.

2 terminals, power supply mode off-on or on-on.

3 terminals, power on mode off-on-on or on-on.

4 terminals, power on mode off-on-on-on or on-on-on.

5 terminals, power on-on-on-on.

The lock head is fixed with a hexagonal nut.

Standard products are the same number or 14 sets of key combinations.

There are up to 14 key combinations.

Ordering information

You can use drawings, samples, etc. to confirm product specifications before placing an order.

After the order is established, order cancellation or order content changes can be accepted within 7 days from the date of order receipt.

Delivery time: The estimated delivery time for standard product orders within 3,000 PCS is 45 days.

The minimum order quantity of the product is set to 500PCS/LOT, and orders under the 'price based on quantity' model are also accepted (please discuss the details with the salesperson).

Products can be customized according to customer needs, such as: number of key number sets, parts configuration, wire welding processing, surface treatment, key extraction position, and added shockproof, dustproof, anti-static and other functions.

Meets UL certification and complies with RoHS 2.0 (2011/65/EU) standards.

Test reports for specified projects can be provided according to customer requirements.

Introduction to Jintai 12mm outer diameter multi-section Key Switch Lock (including single-sided milled copper key lock switch)

Jin Tay Industries Co., LTD. is a professional design and manufacturing company in Taiwan with more than 40 years of experience in the design and manufacturing of 12mm outer diameter multi-section Key Switch Lock (including single-sided milled copper key lock switches).We were founded in 1980. In the field of manufacturing various locks and related hardware parts, Jintai provides professional and high-quality 12mm outer diameter multi-section Key Switch Lock (including single-sided milled copper key lock switches) manufacturing services. Jintai Various quality requirements of customers can always be met.

Jintai invites you to browse our products and services and contact us immediately.

Sales method: manufacturing, wholesale, cooperation, retail, export
Export trade terms: CIF delivery terms including freight and insurance, DDU delivery terms before destination tax, FOB delivery terms at departure port
Sales target market: Taiwan, Mainland China, Hong Kong, Singapore, global
Payment method for inquiry: TT wire transfer, L/C letter of credit

competitive characteristics
Excellent quality: JTIC12mm outer diameter multi-section Key Switch Lock made of zinc alloy (including single-sided milled copper key lock switch)
Environmentally friendly product: 12mm outer diameter multi-section Key Switch Lock made of zinc alloy (including single-sided milled copper key lock switch), has obtained UL certification
Diverse designs: Jin Tay Industries Co., LTD. provides diversified designs of 12mm outer diameter multi-section Key Switch Lock (including single-sided milled copper key lock switch)
12mm outer diameter multi-section Key Switch Lock (including single-sided milled tooth copper key lock switch) accepts original factory commissioned design and manufacturing ODM
12mm outer diameter multi-section Key Switch Lock (including single-sided milled-tooth copper key lock switch) is accepted for OEM manufacturing.
