12mm outer diameter dual-function 4-row design Key Switch Lock (including iron rod with gear lever function)

12mm outer diameter dual-function 4-row design Key Switch Lock (including iron rod with gear lever function)

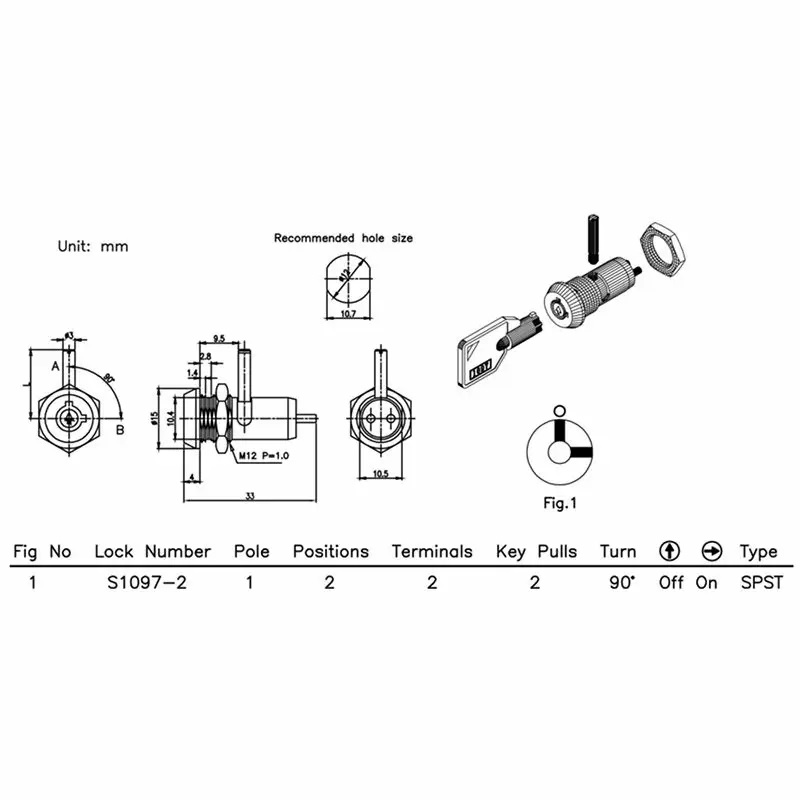

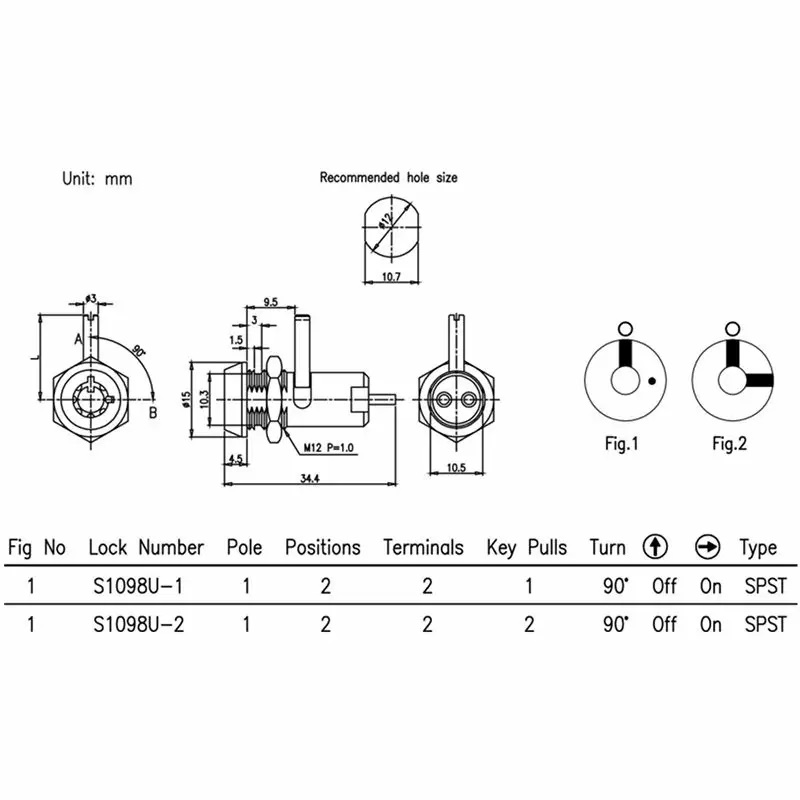

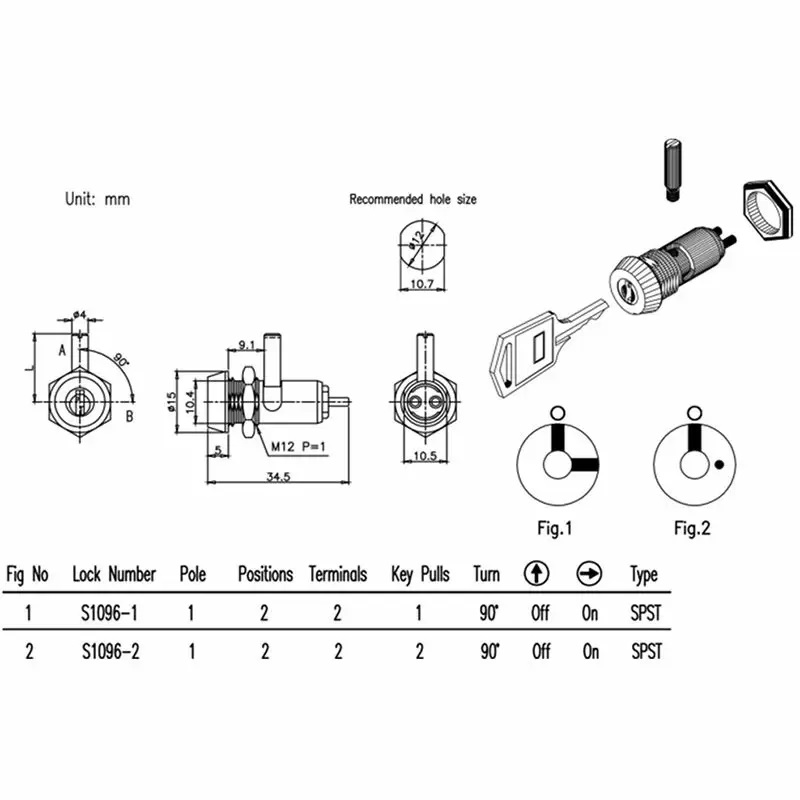

S1096, S1097, S1098U

Gear lever lock, dual function lock, mechanical lock, micro switch



12mm outer diameter dual-function Key Switch Lock switch, zinc alloy die-cast shell surface treated with chrome plating, S1096 lock core made of zinc alloy covered with white iron cover, copper flat key made of nickel plating, 4 plate design, the key has 20 number changes.Dual-function Key Switch LockS1097 is a simple round tube lock with 6 sets of number changes; S1098U is a 4-bead design tube lock with 200 sets of number changes.The standard round rod in the middle of the lock body is 13mm long. The length of the round rod (lever) can be selected in other sizes according to functional requirements. Key Switch Lock with the function of the gear lever has a wider range of use and stronger functions.



Ask now

product specifications

2 round terminal pins and contacts are silver-plated, telecommunications OFF-ON, loop type SPST (single pole single throw), telecommunications reverse ON-OFF specifications can also be made according to customer needs, that is, 12 points are energized, 3 points are not energized, S1096 The key rotation of S1098U and S1098U is 12-3, and the key can be pulled out only at the 12 o'clock position, or the key can be pulled out at both 12 o'clock and 3 o'clock positions; the S1097 can only pull out the key at both 12 o'clock and 3 o'clock positions.Processing steps can be added according to customer needs, such as: wire welding, laser engraving, numbering...etc.



Contact capacity: 0.2A 125VAC, life test passed 6000 times, compliant with ROHS and REACH, used for control boxes, computer cases, communication equipment, removable hard disk boxes.



Product Features

Zinc alloy lock shell, lock core, chrome plating.

S1096 lock shell with tin cover.

S1096 is a 4-bead design, S1097 is a simple design, and S1098U is a 4-bead design.

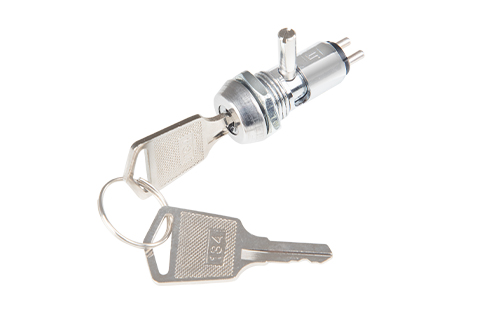

S1096 single edge milled brass key, nickel plated.

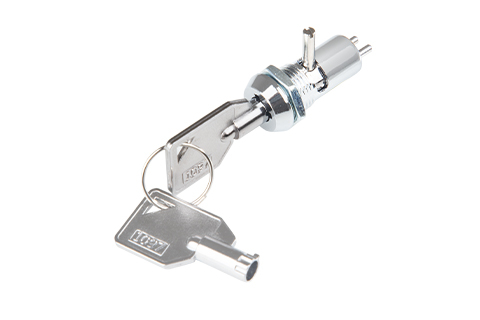

S1097 zinc alloy tubular key, nickel plated.

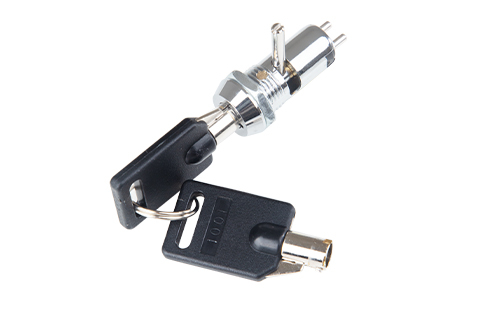

S1098U iron handle copper pipe key, nickel plated, plastic coated handle.

The standard specification of the iron rod is 13mm, and it can also be made according to customer requirements.

Power and shutter dual-function lock.

S1096 and S1098U keys can be single or double drawn, while S1097 can only be double drawn.

Silver plated contacts and terminals.

2 terminals, power on mode off-on.

The lock head is fixed by hexagonal nut or insert.

Standard products are the same number or 20 sets of key combinations.

There are up to 200 key combinations.

Ordering information

You can use drawings, samples, etc. to confirm product specifications before placing an order.

After the order is established, order cancellation or order content changes can be accepted within 7 days from the date of order receipt.

Delivery time: The estimated delivery time for standard product orders within 3,000 PCS is 45 days.

The minimum order quantity of the product is set to 500PCS/LOT, and orders under the 'price based on quantity' model are also accepted (please discuss the details with the salesperson).

Products can be customized according to customer needs, such as: number of key number sets, parts configuration, wire welding processing, surface treatment, key extraction position, and added shockproof, dustproof, anti-static and other functions.

Meets UL certification and complies with RoHS 2.0 (2011/65/EU) standards.

Test reports for specified projects can be provided according to customer requirements.
