12mm outer diameter screw type Cam Lock (including 4pin bead copper tube key)

12mm outer diameter screw type Cam Lock (including 4pin bead copper tube key)

C175

bead lock, safety lock, mini lock

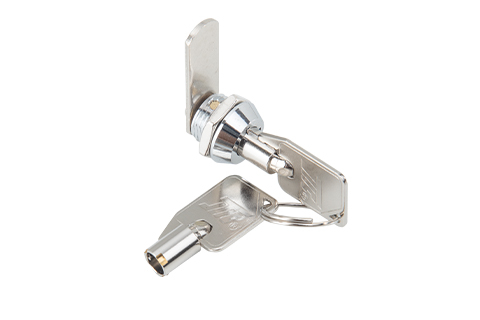

Screw type Cam Lock 12mm, copper material with chrome-plated surface treatment. The lock head is designed with 4 beads, which can arrange up to 100 sets of number changes. The end of the lock core is fixed with screws. It comes with a copper tube and iron handle with nickel-plated key. , easy to insert and rotate, and not easy to break or damage.This product has a wide range of uses and is suitable for industrial chassis, data cabinets, monitoring boxes....etc.Considering the assembly methods and positions used in different environments, you can choose from a variety of tongues with different sizes and styles for matching and assembly. Based on the quantity that is convenient for production, you can also customize the specifications according to customer needs.



Ask now

Product Features

Copper lock shell, lock core, bright chrome plating.

4 bead designs.

Iron brass pipe key, nickel plated.

Keys can be drawn single or double.

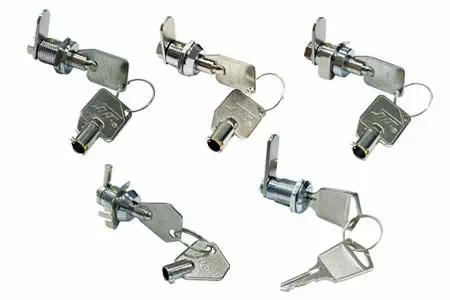

There are various tongue sizes and directions for customers to choose from.

The tongue fixation method is screw type.

The lock head is fixed with a hexagonal nut.

Standard products are of the same number or 1 set of key combinations per 100pcs.

There are up to 100 key combinations.

Ordering information

You can use drawings, samples, etc. to confirm product specifications before placing an order.

After the order is established, order cancellation or order content changes can be accepted within 7 days from the date of order receipt.

Delivery time: The estimated delivery time for standard product orders within 3,000 PCS is 45 days.

The minimum order quantity of the product is set to 500PCS/LOT, and orders under the 'price based on quantity' model are also accepted (please discuss the details with the salesperson).

Products can be customized according to customer needs, such as: number of key number sets, parts configuration, wire welding processing, surface treatment, key extraction position, and added shockproof, dustproof, anti-static and other functions.

Meets UL certification and complies with RoHS 2.0 (2011/65/EU) standards.

Test reports for specified projects can be provided according to customer requirements.
