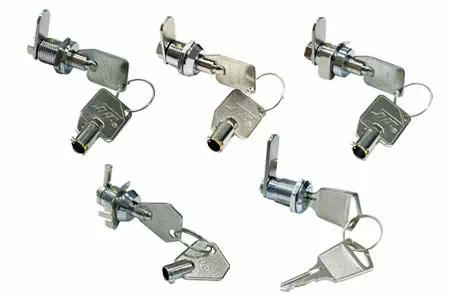

12mm outer diameter gear lever lock (including 4pin bead round tube key)

12mm outer diameter gear lever lock (including 4pin bead round tube key)

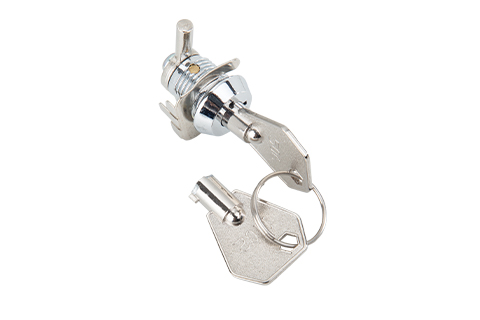

CH520ZS

switch lock, safety lock



The 12mm outer diameter gear lever lock contains a 4-pin bead copper tube key, suitable for 12mm aperture panels, chrome-plated surface treatment, a simple gear lever lock designed with a combination of 2 beads, and comes with a zinc alloy round tube nickel-plated key.This product has a wide range of uses and is suitable for mailboxes, monitoring boxes, tool boxes, data cabinets, servers, paper towel holders, etc.Jintai can add processing steps according to product functional requirements, such as anti-drilling, marking, laser engraving, tapping, turning repair... etc. Based on the quantity that is convenient for production, we can also customize specifications or add additional parts according to customer needs. The lock head is quickly fixed with inserts, which facilitates assembly.



Ask now

Product Features

Zinc alloy lock shell, lock core, bright chrome plating.

2 bead designs.

Zinc alloy key, nickel plated.

The key is double drawn only.

The tail end of the lock core is fixed by screw type.

The lock head is fixed by insert or nut.

1 set of key combinations.

Ordering information

You can use drawings, samples, etc. to confirm product specifications before placing an order.

After the order is established, order cancellation or order content changes can be accepted within 7 days from the date of order receipt.

Delivery time: The estimated delivery time for standard product orders within 3,000 PCS is 45 days.

The minimum order quantity of the product is set to 500PCS/LOT, and orders under the 'price based on quantity' model are also accepted (please discuss the details with the salesperson).

Products can be customized according to customer needs, such as: number of key number sets, parts configuration, wire welding processing, surface treatment, key extraction position, and added shockproof, dustproof, anti-static and other functions.

Meets UL certification and complies with RoHS 2.0 (2011/65/EU) standards.

Test reports for specified projects can be provided according to customer requirements.
